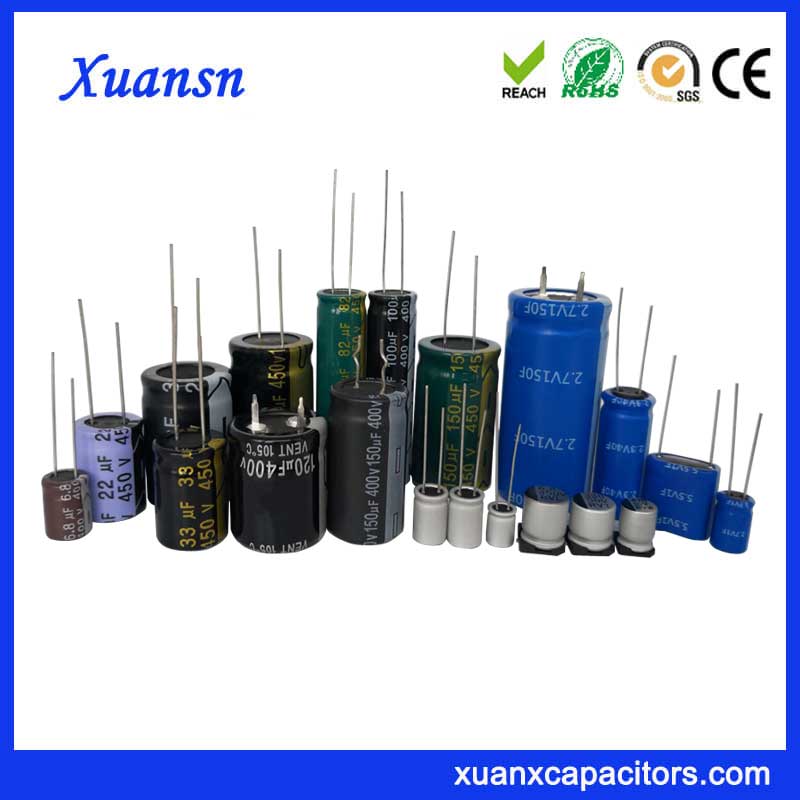

- Electrolytic Capacitors
- Lead type aluminum electrolytic capacitor
- Horn type aluminum electrolytic capacitors
- Bolt type aluminum electrolytic capacitor
- Solid aluminum electrolytic capacitors
- Customized Service: Capacity, Voltage, Size, Trademark
- Warranty: Unconditional replenishment
Electrolytic Capacitors Features And Applications
electrolytic capacitors is a kind of capacitor. The metal foil is a positive electrode (aluminum or tantalum), the oxide film (aluminum oxide or tantalum pentoxide) which is in close contact with the positive electrode is a dielectric, and the cathode is made of a conductive material or an electrolyte (the electrolyte may be a liquid or Solid) is composed of other materials. Since the electrolyte is the main part of the cathode, the electrolytic capacitor is named after it. At the same time, the electrolytic capacitors are not connected correctly. Aluminum electrolytic capacitors can be divided into four categories: lead-type aluminum electrolytic capacitors; horn-type aluminum electrolytic capacitors; bolt-type aluminum electrolytic capacitors; solid aluminum electrolytic capacitors.
Polar electrolytic capacitors usually function as power supply filtering, decoupling, signal coupling, time constant setting, and DC blocking in power supply circuits or intermediate frequency and low frequency circuits. Generally, it can not be used in the AC power supply circuit. When used as a filter capacitor in the DC power supply circuit, the anode (positive electrode) should be connected to the positive terminal of the power supply voltage, and the cathode (negative electrode) should be connected to the negative terminal of the power supply voltage. Otherwise it will damage the capacitor.
Non-polar electrolytic capacitors are commonly used in speaker divider circuits, television S correction circuits, and start-up circuits for single-phase motors.
Electrolytic capacitors are widely used in household appliances and various electronic products. Their capacities range from 1 to 33000 μF and rated operating voltages range from 6.3 to 700V. The disadvantage is that the dielectric loss and the capacity error are large (the maximum allowable deviation is +100%, -20%), the high temperature resistance is poor, and the storage time is long and easy to be invalid.
Dongguan Xuansn Electronic Tech Co., Ltd., founded in 2004, is engaged in the manufacture of electrolytic capacitors. And sell all kinds of electronic components: ceramic capacitors, MLCC, film capacitors, solid capacitors, super capacitors, resistors, diodes, transistors, fuses, inductors, bridge rectifiers, varistors, thermistors.
Services: OEM, program customization, technical support, unconditional exchange.
