3V 7F Supercapacitor High Energy Density Xuansn Manufacturer

3V 7F Supercapacitor High Energy Density Xuansn Manufacturer

  • Maximum working current:1.12A
  • Maximum peak current:6.82A
  • Maximum leakage current:0.025mA
  • Power density:3867W/kg
  • Maximum energy:0.0095W.h
  • Energy Density:3.98Wh/kg

Description

Unlike batteries, supercapacitors charge in seconds and can withstand nearly unlimited charge cycles. Supercapacitors have higher energy density than traditional capacitors but lower energy density than standard batteries used in electronics such as Internet of Things devices.Compared with other capacitors, 3V 7F supercapacitor can store and release energy very quickly. This feature makes it widely used in electric vehicles and new energy applications.

3V 7F SuperCapacitor Features

  • High Energy Density
  • High Power
  • Low Internal Resistance

Specification

Item Performance
Working voltage 3V.DC
Surge voltage 3.16V.DC
Capacitance 7F
Capacity Error -20%~+50%
Operating temperature -40℃~65℃

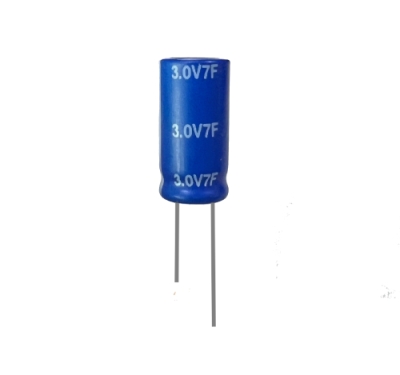

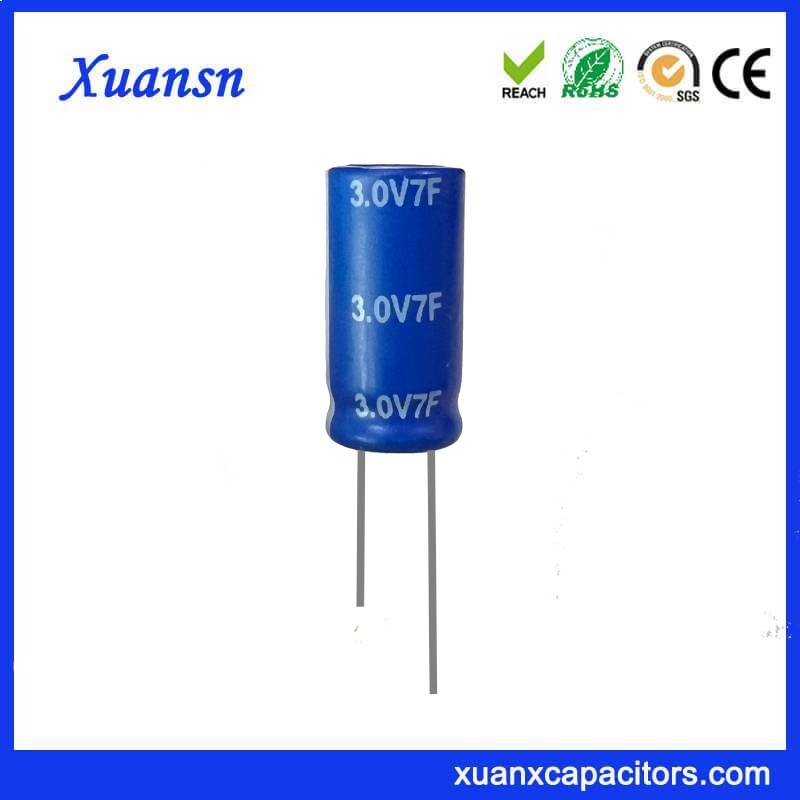

 3V 7F Supercapacitor

Product Size

Diameter Length
10mm 25mm

(Note:Products can be customized according to your requirements)

3V 7F SuperCapacitor Application

  • Consumer Electronics
  • Main power
  • Backup power
