Best 47UF 25V Non-Polar Capacitor Does Not Leak

Home » Products » Best 47UF 25V Non-Polar Capacitor Does Not Leak

Best 47UF 25V Non-Polar Capacitor Does Not Leak

  • 47uf 25v Bipolar Electrolytic Capacitor
  • Load life : 3000 hours at +85°c
  • Capacitance:0.47~4700UF
  • Ripple Current:120marms
  • Free Sample
  • OEM/ODM services
Inquiry Now


Best 47UF 25V Non-Polar Capacitor Does Not Leak

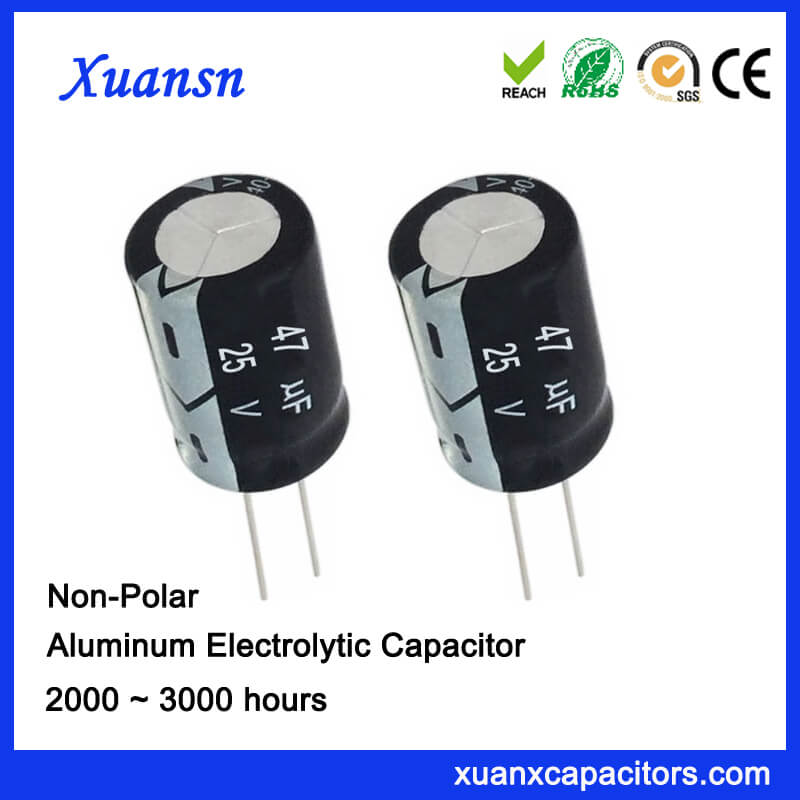

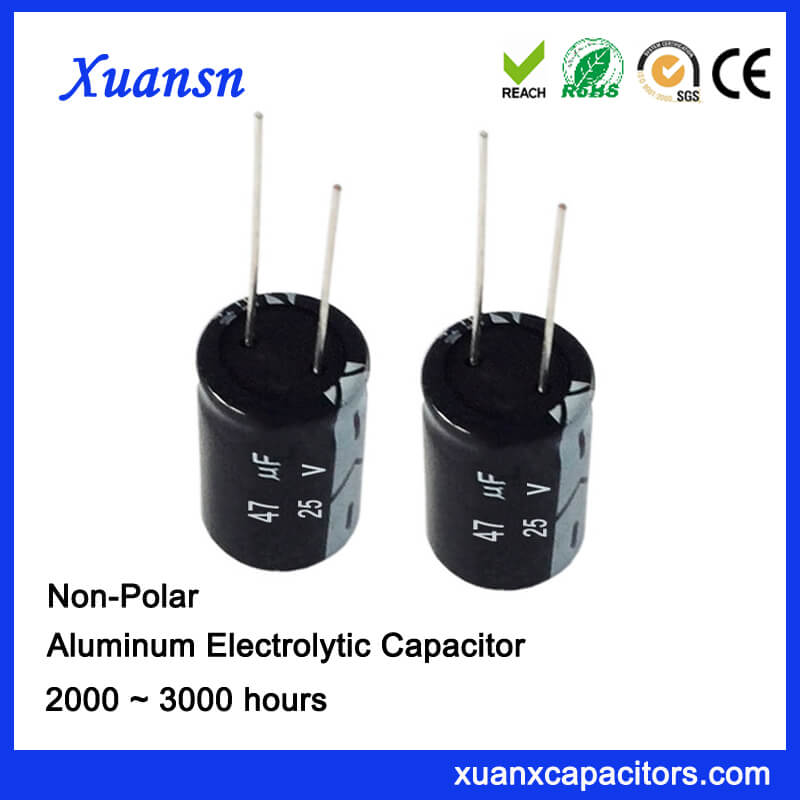

  • 47uf 25v non polarty radial aluminum electrolytic capacitor
  • Load life of 2000 to 3000 hours at -40 ~ +105°c
  • Size:6*12mm
  • Rated Ripple Current:120mArms
  • Offer OEM/ODM services
  • Provide Free Sample

47uf 25v Radial Alulminum Electrolytic Capacitor is our 2000 to 3000 hours non-polarity series. The non polarity radial alumium electrolytic capacitor is used in circuits with reversing polarity

Specification of non polarized aluminum electrolytic capacitors

Non Polarised 220UF 100V Electrolytic Capacitor


Non Polarised 220UF 100V Electrolytic Capacitor

ΦD 5 6.3 8 10 13 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Φd 0.5 0.5 0.5 0.6 0.6 0.8 0.8
α 1.0 2.0
β 0.5

Frequency coefficient of rated ripple current

Frequency(Hz) 50 120 1k 10k 100k
0.47  to 47 uf 0.75 1 1.35 1.55 2
68 to 680 uf 0.8 1 1.25 1.34 1.5
1000 to 4700 uf 0.85 1 1.1 1.13 1.15

Temperature Coefficient

Tem(℃) +45 +60 +85
Factor 1.6 1.35 1.0

Standard Ratings(at 120Hz, 85°c)

Our certifications

long life aluminum capacitor manufacturers

Xuansn factory show

1000UF 6.3V NP Best Quality Electrolytic Capacitors

Our advantage:

  • We have a sound raw material cooperation system and cargo inspection mechanism.
  • Products with high stability, high temperature, small size, small tolerance and so on.
  • Product tolerances are strictly controlled between -15% to -10%.
  • We have the world’s most advanced production equipment, and improve the management process.
  • We can provide custom design of your needs and provide free sample for you.
  • Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.


Q1. Can i have some samples for capacitors?

 A:  Yes, welcome sample to test and check quality,factory brand samples are free.

Q2. What about the lead time?

A:  The sample needs 3-5days, the mass products needs 2 weeks for order quantity.

Q3. How do you ship the goods and how long does it take to arrive?

A:   We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.

Q4. Is it OK to print my logo on capacitor?

A:   Yes,pls inform us formally before our production and confirm the design firstly based on our sample

Q5. Do you offer guarantee for the products?

A:   Yes,we offer 2-3years warranty to our products.

Q6. How to deal with the faulty?

A:   If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.
