MLCC Capacitor X7R 0805 25V 10UF Ceramic Capacitor

MLCC Capacitor X7R 0805 25V 10UF Ceramic Capacitor

  • 102K 6.3v  Multilayer Chip Ceramic Capacitor
  • Size, 0402
  • Operation Temperature Range, 10℃~85℃
  • Packing, 4000pcs/reel

Description

MLCC Capacitor X7R 0805 25V 10UF Ceramic Capacitor

X7R MLCC Capacitor for General-use is class er low frequency capacitor, its capacitance is stable.

* Properties

  • the capacitance is stable, its operating temperature is -*55ºC ~ 125ºC, within the range, the temperature coefficient is ± 15%.
  • it has multi-layer monolithic structure, has high reliability.
  • it has good solderability and soldering resistance, suitable for flow soldering/reflow soldering.

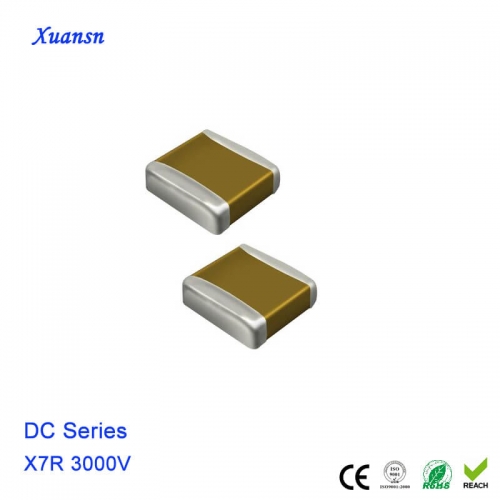

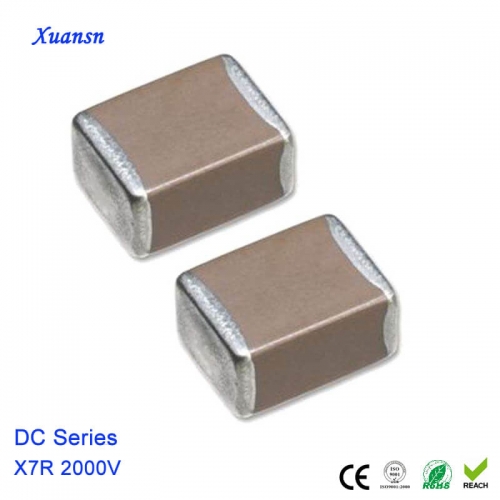

mlcc capacitor
* Applications
  it is suitable for all kinds of filter and coupling circuits.

* Product part number expression method

0805        B        103        K        500        N        T
   1           2           3         4           5          6         7



1.Dimensions
Type British
(Inch)
Metric
(mm)
0201 0.02 x 0.01 0.60 x 0.30
0402 0.04 x 0.02 1.00 x 0.50
0603 0.06 x 0.03 1.60 x 0.80
0805 0.08 x 0.05 2.00 x 1.25
1206 0.12 x 0.06 3.20 x 1.60
1210 0.12 x 0.10 3.20 x 2.50
1808 0.18 x 0.08 4.50 x 2.00
1812 0.18 x 0.12 4.50 x 3.20
2220 0.22 x 0.20 5.70 x 5.00
2225 0.22 x 0.25 5.70 x 6.30
3035 0.30 x 0.35 7.60 x 9.00



2.Dielectric Type
Code Dielectric Material
CG COG
CH COH
HG HG
LG LG
PH PH
RH RH
SH SH
TH TH
UJ UJ
SL SL
X X5R
B X7R
E Z5U
F Y5V



3.Normal Capacitance(PF)
Expression Method Actual Value
0R5 0.5
1R0 1.0
102 10 x 10²
224 22 x 10³



4. Capacitance Tolerance
Code Tolerance
B ±0.10pF
C ±0.25pF
D ±0.5pF
F ±1.0%
G ±2.0%
J ± 5%
K ± 10%
M ± 20%
S +50%~-20%
Z +80%~-20%



5. Rated Voltage
Expression Method Actual Value
6R3 6.3V
250 25v
500 50v
101 100v
201 200v



6.Temperature Type
Expression Method Termination Material
S Silver Solderable Termination
C Copper Solderable Termination
N Nickel Barrier Termination



7. Package Method
Expression Method Packaging
No Mark Bulk Packaging in a Bag
T Taping Packaging
B Bulk Plastic Box Packaging

* Outside Dimension

Type Dimension(mm)
British expression Metric expression L W T WB
0201 0603 0.6 ± 0.03 0.3 ± 0.03 0.3 ± 0.03 0.15 ± 0.10
0402 1005 1.00 ± 0.05 0.50 ± 0.05 0.50 ± 0.05 0.25 ± 0.10
0603 1608 1.60 ± 0.10 0.80 ± 0.10 0.80 ± 0.10 0.30 ± 0.10
0805 2012 2.00 ± 0.20 1.25 ± 0.20 ≤ 0.55
0.80 ± 0.10
1.00 ± 0.10
1.25 ± 0.20
0.50 ± 0.20
1206 3216 3.20 ± 0.30 1.60 ± 0.20 0.80 ± 0.10;
1.00 ± 0.10.
1.25 ± 0.20
1.60 ± 0.30
0.60 ± 0.30
1210 3225 3.20 ± 0.30 2.50 ± 0.30 ≤ 2.80 0.60 ± 0.30
1808 4520 4.50 ± 0.40 2.00 ± 0.20 ≤ 2.20 0.60 ± 0.30
1812 4532 4.50 ± 0.40 3.20 ± 0.30 ≤ 3.50 0.60 ± 0.30
2220 5750 5.70 ± 0.40 5.00 ± 0.40 ≤ 3.50 0.60 ± 0.30
2225 5763 5.70 ± 0.50 6.30 ± 0.50 ≤ 6.20 0.60 ± 0.30
3012 7632 7.60 ± 0.50 3.20 ± 0.30 ≤ 8.10 0.60 ± 0.30
3035 7690 7.60 ± 0.50 9.00 ± 0.50 ≤ 8.10 0.60 ± 0.30

Temperature Coefficient / Characteristics

Dielectric Reference Temperature Point Temperature Coefficient Operation Temperature Range
COG 20ºC 0±30  ppm/ºC -55ºC ~ 125ºC
COH 20ºC 0±60  ppm/ºC -55ºC ~ 125ºC
HG 20ºC -33±30  ppm/ºC -25ºC ~ 85ºC
LG 20ºC -75±30  ppm/ºC -25ºC ~ 85ºC
PH 20ºC -150±60  ppm/ºC -25ºC ~ 85ºC
RH 20ºC -220±60  ppm/ºC -25ºC ~ 85ºC
SH 20ºC -330±60  ppm/ºC -25ºC ~ 85ºC
TH 20ºC -470±60  ppm/ºC -25ºC ~ 85ºC
UJ 20ºC -750±120  ppm/ºC -25ºC ~ 85ºC
SL 20ºC -1000~+140  ppm/ºC -25ºC ~ 85ºC
X7R 20ºC ±15% -55ºC ~ 125ºC
X5R 20ºC ±15% -55ºC ~ 85ºC
Z5U 20ºC -56%~+22% 10ºC ~ 85ºC
Y5V 20ºC -80%~+30% -25ºC ~ 85ºC

Note: Nominal temperature coefficient and allowed tolerance of classI are decided by the changing of the capacitance between 20ºC and 85ºC. Nominal temperature coefficient of classII are decided by the temperature of 20ºC.

Capacitance Range and Operatin Voltage

Size Code Rated Voltage Capacitance
COG(NPO)(PF) X7R(PF) X5R(uF) Y5V(Z5U)(PF)
0201 6.3V _______ _______ 0.015~1.0 10,000~100,000
10V _______ 100~10,000 0.015~0.1 10,000~100,000
16V _______ 100~10,000 _______ 10,000
25V _______ 100~10,000 _______ _______
50V 0.5~100 _______ _______ _______
0402 4V _______ _______ 0.1~4.7 _______
6.3V _______ 100~100,000 0.1~4.7 1,000~1,000,000
10V _______ 100~100,000 0.1~2.2 1,000~1,000,000
16V _______ 100~100,000 0.1~1 1,000~220,000
25V _______ 100~100,000 0.1 1,000~220,000
50V 0.1~1,000 100~47,000 0.047 1,000~100,000
0603 4V _______ 150~470,000 0.47~10 _______
6.3V _______ 150~470,000 0.47~10 1,000~10,000,000
10V _______ 150~470,000 0.47~10 1,000~10,000,000
16V _______ 150~470,000 0.47~4.7 1,000~2,200,000
25V _______ 150~470,000 0.47~2.2 1,000~2,200,000
50V 0.1~3,300 150~470,000 _______ 1,000~1,000,000
0805 4V _______ 150~1,000,000 1~22 _______
6.3V _______ 150~1,000,000 1~22 1,000~22,000,000
10V _______ 150~1,000,000 1~22 1,000~22,000,000
16V _______ 150~1,000,000 1~10 1,000~10,000,000
25V _______ 150~1,000,000 1~4.7 1,000~4,700,000
50V 0.3~22,000 150~1,000,000 _______ 1,000~2,200,000
1206 4V _______ 220~2,200,000 2.2~100 _______
6.3V _______ 220~2,200,000 2.2~47 1,000~47,000,000
10V _______ 220~2,200,000 2.2~22 1,000~22,000,000
16V _______ 220~2,200,000 2.2~10 1,000~22,000,000
25V _______ 220~2,200,000 2.2~10 1,000~10,000,000
50V 0.3~100,000 220~2,200,000 2.2 1,000~4,700,000
1210 6.3V _______ _______ 47~100 4,700~100,000,000
10V _______ _______ 4.7~47 4,700~47,000,000
16V _______ 220~4,700,000 4.7~22 4,700~22,000,000
25V _______ 220~4,700,000 4.7~10 4,700~10,000,000
50V 10~100,000 220~4,700,000 _______ 4,700~4,700,000
1808 6.3V _______ 220~4,700,000 47~100 _______
10V _______ 220~4,700,000 4.7~47 _______
16V _______ 220~4,700,000 4.7~22 _______
25V _______ 220~4,700,000 4.7~10 _______
50V 10~100,000 220~4,700,000 _______ _______
1812 6.3V _______ _______ 47~100 10,000~100,000,000
10V _______ _______ 4.7~47 10,000~100,000,000
16V _______ 470~4,700,000 4.7~22 10,000~22,000,000
25V _______ 470~4,700,000 4.7~10 10,000~10,000,000
50V 10~100,000 470~4,700,000 _______ 10,000~10,000,000

Note: We can design according to customer special requirements MLCC.
