energy storage capacitor

Description

energy storage capacitor Features And Applications

Energy Storage Capacitor, The Main Circuit Is A Voltage-Type, AC-DC Energy Conversion Mode Converter, Due To The Large-Capacity Energy Storage Circuit Between The Rectification And Inverter Circuit, Due To The Characteristics Of The Voltage Across The Capacitor Can Not Be Abrupt, At The Initial Power-On In The Stage, The Capacitor Is Shaped Like A “Short Circuit”, Which Will Form A Huge Surge Charging Current, Which Will Damage The Large Current Of The Rectifier Module And Cause The Air Circuit Breaker Connected To The Power Supply End Of The Inverter To Trip Due To Overcurrent.

The Conventional Processing Method Is To Charge The Current Limiting Resistor And The Charging Contactor (Relay) In Series Between The Rectifying And Capacitor Energy Storage Circuits, And The Control Of The Charging Process Of The Capacitor Is Such

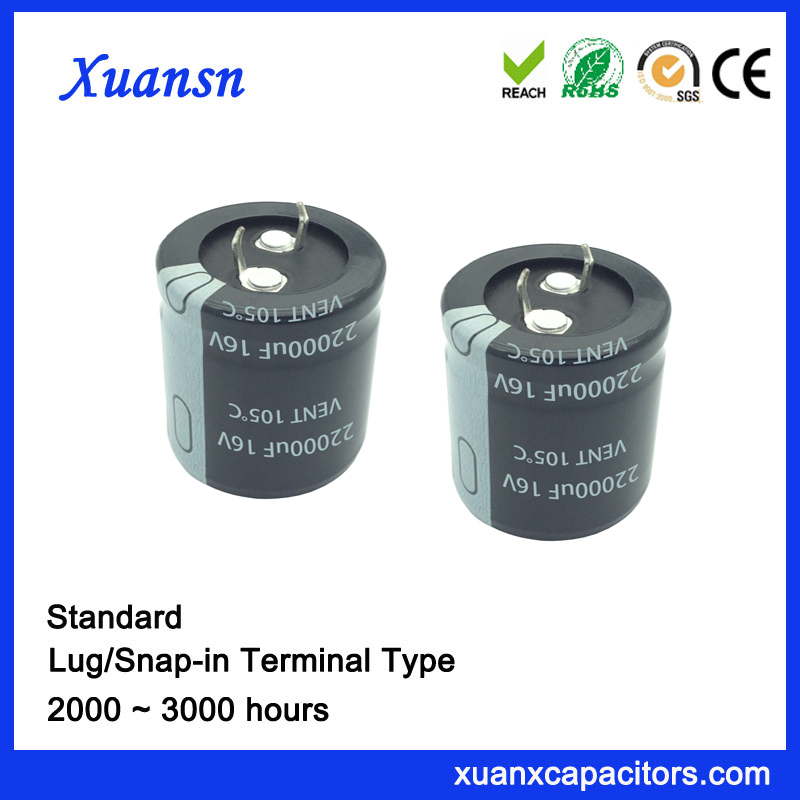

energy storage capacitor 22000uf 16v Parameter

Type: Lug/Snap-In Aluminum Electrolytic Capacitors
Specifications / Model：CDXSN223M1CD22L50B
                                       CDXSN223M1CD25L40B
                                       CDXSN223M1CD30L30B
                                       CDXSN223M1CD35L25B
Colour：Black Shell
Capacitance: 22000uF(223)                                    Rated Voltage: 16V(1C)
Size(D*L): 22*50,25*40,30*30,35*25mm                Solder Pin:10.0mm
Ripple Current:4.2,4.4Arms                                    Tanδ：0.4
Load Life(105°C):3000h
Weight:28.6,30.1,31.2,32.5g
Packing：Box Packing(B)

xuansn factory show

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory
