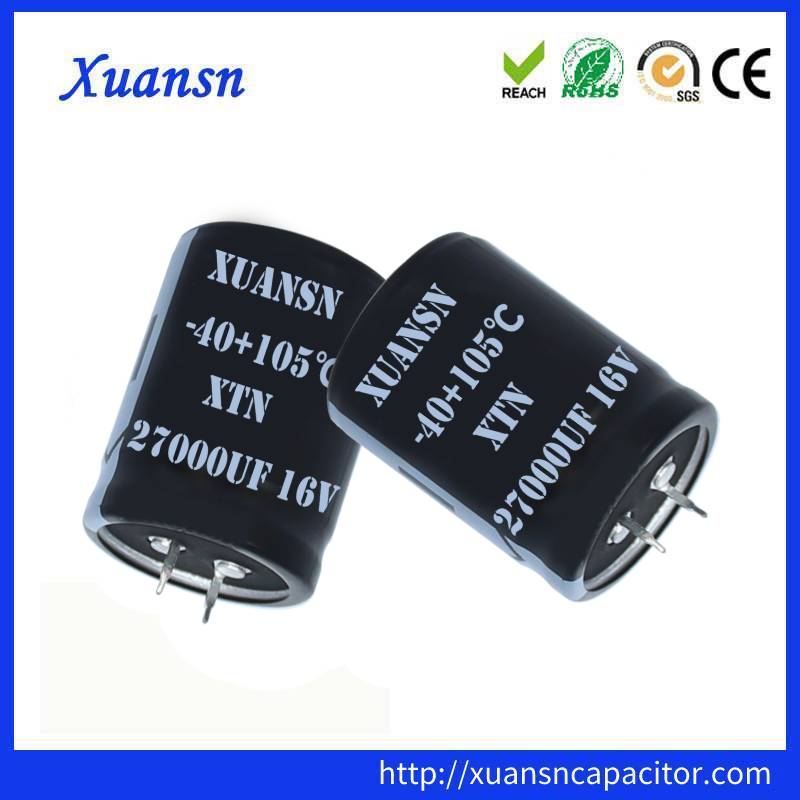

Electrolytic capacitors 27000uf 16v capacitor 105 celsius snap in terminal

Electrolytic capacitors 27000uf 16v capacitor 105 celsius snap in terminal

  • Series:Snap-in terminal
  • Operating Temperature:-40℃-105℃
  • Features:High pressure resistance
  • Applications:welding machine,inverter,photovoltaic,color TV,computer,amplifier
  • Manufacturer:XUANSN

Description

27000uf 16v capacitor are solder pin type electrolytic capacitors. It has excellent high frequency, long life, high reliability, high ripple current characteristics, and the size can be changed. Applications: suitable for industrial-grade inverters, servo control, switching power supplies, PC power supplies, and industrial power supplies. And there are super excellent high frequency, super long life, high ripple current, high reliability characteristics.

27000UF 16V Electrolytic Capacitor-Features

1.Highly reliable capacitors that withstand under high ripple current.
2.Two or three dimensions with same ratings.
3.Aluminum case designed explosion-proof vent.
4.Best for switching power supplies.

Parameters Table

 Item Characteristics
Temperature Range -40-105℃
Specification 27000UF16V
Capacitance Tolerance ±20% (M)                                                    (at 20°C, 120Hz)
Dissipation Factor (tanδ) tanδ (max.)=0.50                                       (at 20°C, 120Hz)
Rated ripple current (Arms/105°C, 120Hz) 4.20
Low Temperature Characteristics (Max. Impedance Ratio) Z(-25°C)/Z(+20°C)=6
Z(-40°C)/Z(+20°C)=15                              (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 105°C.
Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤200% of the initial specified value
Leakage Current :≤The initial specified value
Leakage Current I≤3 CV
Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes)
Shelf Life At +105˚C no voltage applied after 1,000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits
Leakage current : ≤Initial specified value
Cap. change : within ±15% of the initial measured value
tan δ : ≤150% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz) 60 120 1k 10k-50k
16 0.90 1.00 1.15 1.25

How to order

XNS        103       M     1A     D22L25           B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number

Our advantage

1. Have 18 years experiences in capacitor industry. Be able to quickly understand the needs of customers and give feedback quickly.

2. Covers all capacitors: Electrolytic capacitors, film capacitors, safety capacitors, ceramic capacitors, super capacitors.

3.With 200 production lines, the sample delivery time is 3 days, and the bulk goods delivery time is 2 weeks.

4.The company has its own R&D team and after-sales team, providing complete pre-sale, in-sale and after-sale services.
