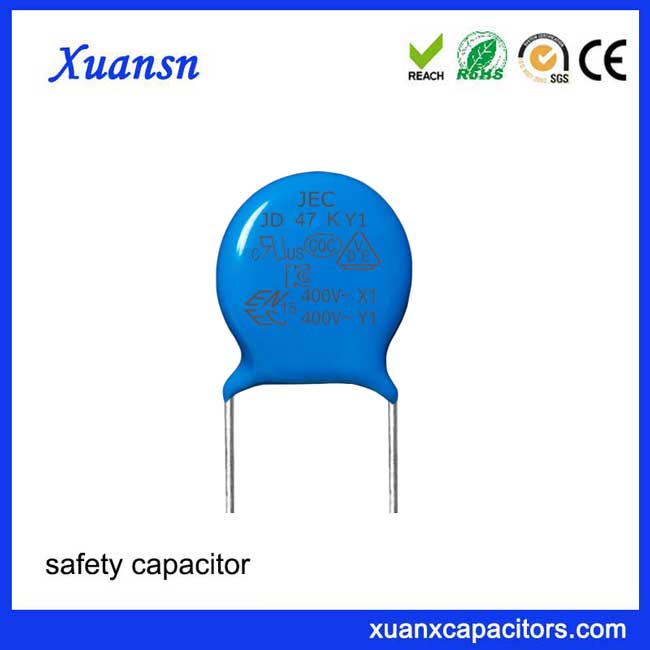

ceramic capacitor for ac 47K400V

Type: safety capacitor
Capacitance: 47pF
Rated Voltage(AC): 400VAC
Tolerance:±20%（M），±10%（K）
Withstand voltage(AC)：4000VAC
Color: Blue
Special Service: Cut Feet, Bend Feet
Warranty: Unconditional replenishment

Description

ceramic capacitor for ac 47K400V Features And Applications

Ceramic capacitor for ac 47K400V, a type of safety protection capacitor. Available in both K and M options, no noise. Meets AC capacitor standards and is certified for safety. Used for anti-jamming between line-over circuits.

ceramic capacitor for ac 47K400V Parameter

Type : safety capacitor
Colour：Blue
Capacitance:47pF
Rated Voltage(AC):400VAC
Withstand voltage(AC)：4000VAC
Tolerance:±20%（M），±10%（K）
Material Properties：Y5P,Y5U,Y5V
Temperature range: -25 to 85°C
Tanδ：0.025~0.05
D:7.0mm
F:9.5mm
T:6.0mm
Rated Freq(HZ): 1KHZ
Certification：UL,SEMKO,SEV,FIMKO,NEMKO,DEMKO,VDE.CQC.KC

ceramic capacitor for ac 47K400V
