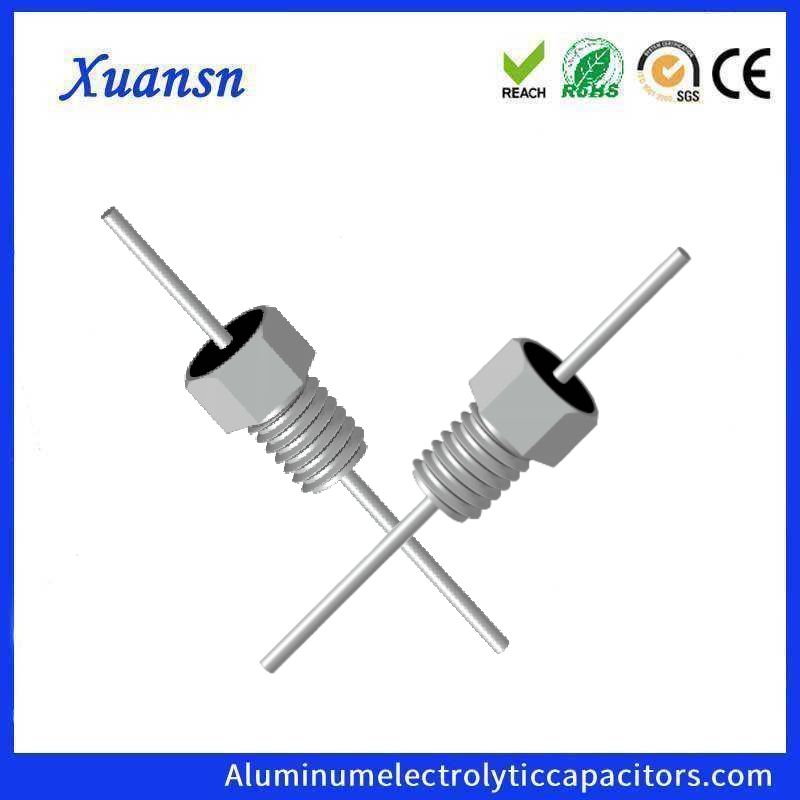

High-Frequency Noise Filter 4700pF 100V Feedthrough Capacitor with Thread Mount
Description
Our 4700pF 100VDC threaded feedthrough capacitor is designed for high-frequency EMI suppression in sensitive electronic systems. With a low capacitance value and high stability ceramic dielectric, it is ideal for filtering RF noise while maintaining signal integrity.
As a professional manufacturer, we provide a full range of EMI solutions.
👉 Feedthrough Capacitor Manufacturer
Threaded feedthrough capacitors are designed for high-frequency EMI filtering in demanding environments. Featuring a coaxial structure and threaded metal housing, they provide low impedance grounding, excellent shielding performance, and stable mechanical installation.
Electrical Parameters
Please refer to the following electrical specifications for the 470pF 100VDC threaded feed-through capacitor.
| Capacitance | 4700pF |
|---|---|
| Rated Voltage | 100VDC |
| Material characteristics | Y5V |
| Plating Layer | Nickel |
| Rated Current | 7A |
| Circuit Type | C |
| Product Number | XSL3325-023AN |
| Manufacturer | Xuansn |
Mechanical Drawing
Please refer to the following size for the 4700pF 100VDC threaded feedthrough capacitor.
Overall Dimensions
| d | L | L1 | L2 | L3 |
|---|---|---|---|---|
| 0.7 | 30.3 | 6.6 | 3 | 8 |
Key Features
Our threaded feedthrough capacitors are engineered for high-frequency EMI filtering and reliable grounding performance.
Excellent EMI Filtering Performance
Designed as a high-performance feedthrough capacitor, it provides effective suppression of high-frequency EMI and RF noise.
Low Inductance Coaxial Structure
The coaxial design minimizes parasitic inductance, ensuring superior performance in high-frequency applications.
Threaded Mounting Design
Secure threaded installation offers strong resistance to vibration and mechanical stress in industrial environments.
360° Grounding Connection
Direct metal-to-panel contact creates a continuous grounding path, improving shielding effectiveness and EMI suppression.
Wide Capacitance Range
Available from pF to μF, suitable for both low capacitance RF filtering and general EMI filtering applications.
High Reliability Ceramic Dielectric
Ensures stable electrical performance across wide temperature and frequency ranges.
Compact and Robust Construction
Space-saving design with durable structure, ideal for harsh and high-density electronic systems.
Typical Applications
This feedthrough capacitor is especially suitable for:
- RF Communication Equipment
- High-Speed Signal Interfaces
- Test & Measurement Devices
- Medical Electronics
- Shielded Enclosures
It is widely used where low capacitance and high-frequency filtering are both required.
Why 4700pF 100VDC Threaded Feedthrough Capacitor Matters in EMI Filtering
A feedthrough capacitor plays a critical role in high-frequency EMI filtering, especially in applications where signal integrity and precision performance are essential.
Due to its ultra-low capacitance, it introduces minimal capacitive loading on signal lines. This makes it particularly suitable for high-speed and RF circuits, where excessive capacitance could degrade signal quality.
Key Advantages
- Preserves Signal Integrity
Maintains the original waveform of high-speed signals without distortion or delay. - Minimizes Signal Loss
Reduces insertion loss on useful signals while effectively filtering unwanted noise. - Optimized for High-Frequency EMI Suppression
Efficiently shunts high-frequency interference to ground without affecting low-frequency or DC signals. - Ideal for RF and Precision Applications
Widely used in communication systems, test equipment, and sensitive electronic devices. - Balanced Performance
Provides an optimal balance between EMI filtering effectiveness and electrical transparency.
