CBB61 Capacitors polyester film 250VAC used for starting and running single-phase motors

CBB61 Capacitors polyester film 250VAC used for starting and running single-phase motors

  • Type: Composite Film Capacitor
  • Deviation: ±5% (J) ±10% (K)
  • Operating Temperature:-40℃-85℃
  • Packing type: through hole
  • Warranty: Unconditional replenishment

Description

CBB61 Capacitors polyester film 250VAC is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

CBB61 Capacitors polyester film 250VAC — CBB61

                            250VAC Polypropylene Film Capacitors               250VAC Polypropylene Film Capacitors

specifications

Climate category/flame retardant rating 40/85/21/B
 Operating temperature range -40℃-85℃
 Rated voltage 450Vac for S3 ,250V/300V/350V/400V/450Vac for S0
Capacitance range 1.0μf(105)-50μf(506) Class-S0     1.0μf(105)-5μf(505) Class-S3
Capacitance deviation ±5%(J)
Insulation resistance ≧3000S(20℃,100V,1min)
Dissipation factor 0.2%Max,at1KHz and 25℃

Features:
1. Encapsulated in plastic shell, with good appearance consistency.
2. Small loss at high frequency, suitable for larger current.
3. High insulation resistance, good self-healing and long life.

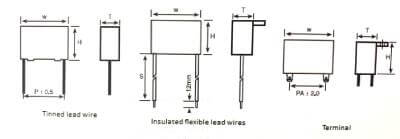

 Structure:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.
3. The installation components include plastic ears and iron ears.
4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.
Conditions of use:
1. Altitude: ≤2000m.
2. Residual voltage when put in: no more than 10% of the rated voltage.
3. Maximum allowable voltage: no more than 1.1 times the rated voltage.
4. Maximum allowable current: no more than 1.3 times the rated current.
