- Series: CL11
- Error: ±5% (J)
- Withstand voltage: 2UR (5s)
- Electric capacity range: 0.001~0.47uf
- Customized service: capacity, voltage, size, trademark

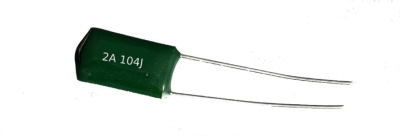

100nf capacitor polyester film 2A104J 0.1UF 100V green
Description
100NF capacitor polyester film, as the name implies, are capacitors with polyester film as the medium, sandwiched in the insulating medium, rolled into a cylindrical or flat cylindrical shape.Polyester film capacitors are also called Mylar capacitors. The word “polyester” usually refers to polyethylene terephthalate (PET), so it can also be called PET capacitor.
100NF Capacitor polyester film-Structure diagram
100NF Capacitor polyester film are inductively wound with polyester film as the dielectric and aluminum foil asthe electrode with copper-clad steelleads and epoxy resin coated.
100NF Capacitor polyester film-Features
- Small size, light weight, low price
- Good stability and high reliability
- The leads are directly spot-welded to the electrodes, with little loss
- Widely used in DC and pulsating circuits of radio and television products, communication equipment, monitors, energy-saving lamps and various electronic instruments.
100NF Capacitor polyester film-Characteristics
| ltem | Characteristics |
|---|---|
| Reference standard | GB6346 (IEC 60384-11) |
| Climatic Category | 40/85/21 |
| Rated Voltage | 100V |
| Capacitance | 0.1µf |
| Capacitance Tolerance | ±5%(J) |
| Voltage proof | 2UR (5S) |
| Dissipation Factor | ≤0.01 (20°C, 1KHz) |
| Insulation Resistance
≥30000MΩ |
20°C，1min |
[/fusion_table]
