AC capacitor 250VAC335j best selling products

  • Type: Film capacitor
  • Deviation: ±5% (J) ±10% (K)
  • Application: General
  • Packing type: through hole
  • Warranty: Unconditional replenishment

Description

AC capacitor 250VAC335j best selling products

AC capacitor 250VAC335j Features

  • The capacitor uses metalized polypropylene film as the medium.
  • High frequency loss is small.
  • The internal temperature rise is small.
  • Good insulation performance and good self-healing effect.
  • Flame retardant epoxy powder encapsulation (UL94 V-0).

The main purpose

  • It is widely used in high frequency, DC, AC and pulse circuits.
  • It is suitable for color TV S correction circuit that requires small size and excellent performance.
  • Specially designed for S-correction circuit and LED lighting driver of large screen monitors and color TVs.

Specifications

Reference StandardGB/T 14579 (IEC 60384-17)
Climate Category55/85/21
Operating Temperature Range-40℃~+85℃

(+85℃to+105℃:decreasing factor 1.25%per ℃for UR)

Capacitance Range0.01UF~4.7UF
Rated Voltage230VAC,250VAC,300VAC
Capacitance Deviation±5%(J) 、±10%(K)
Voltage Proof1.5UR(5s)
Dissipation Factor≤0.1%(20℃,1kHz)
Insulation ResistanceUR≤100V     CR≤0.33UF  IR≥15000MΩ

                       CR>0.33UF  IR≥5000S

Product show

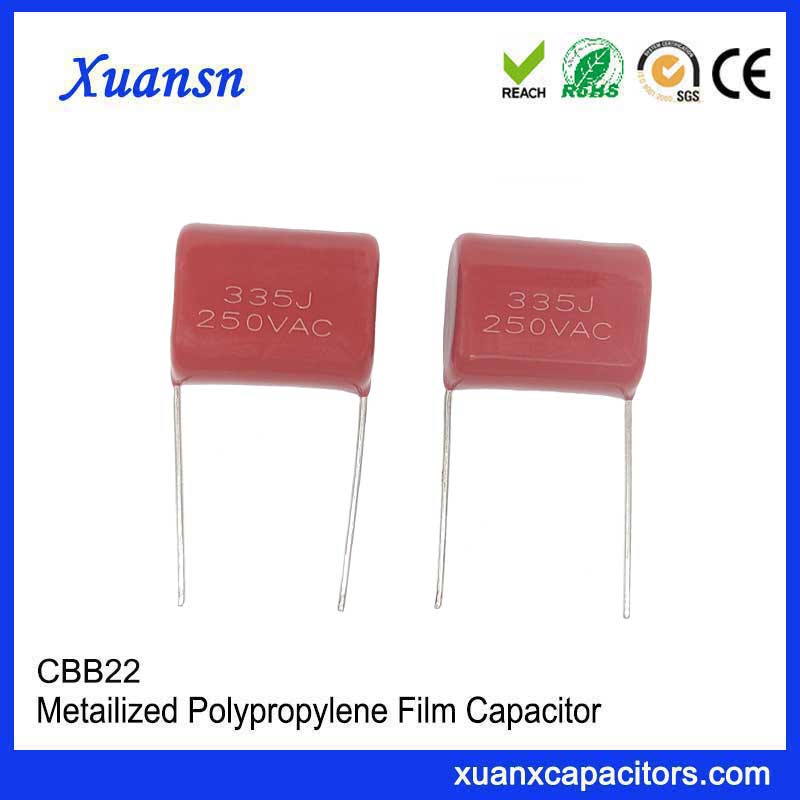

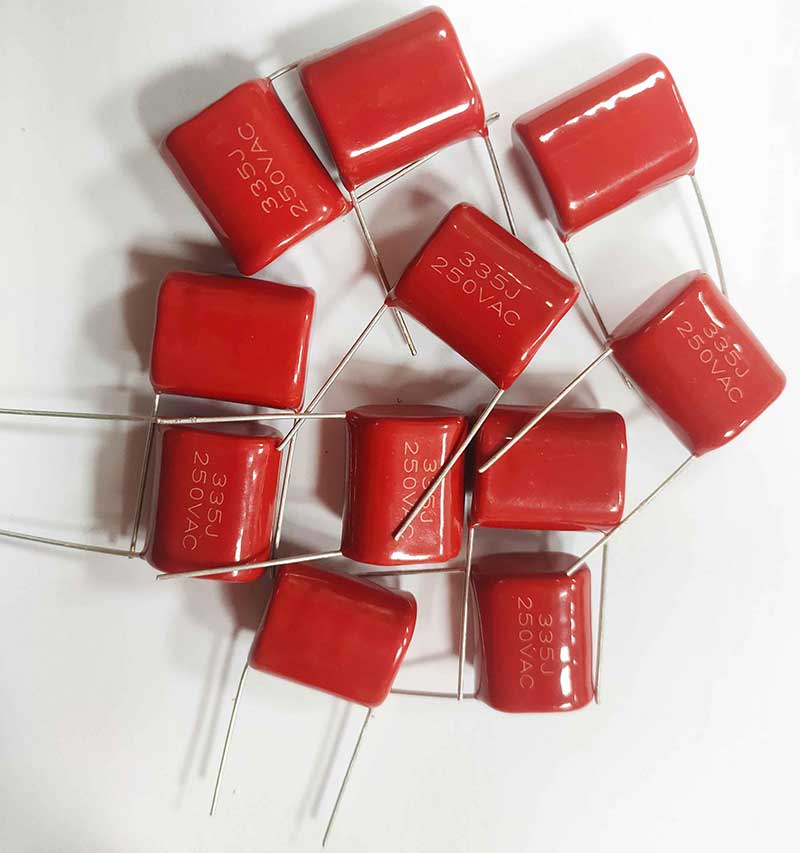

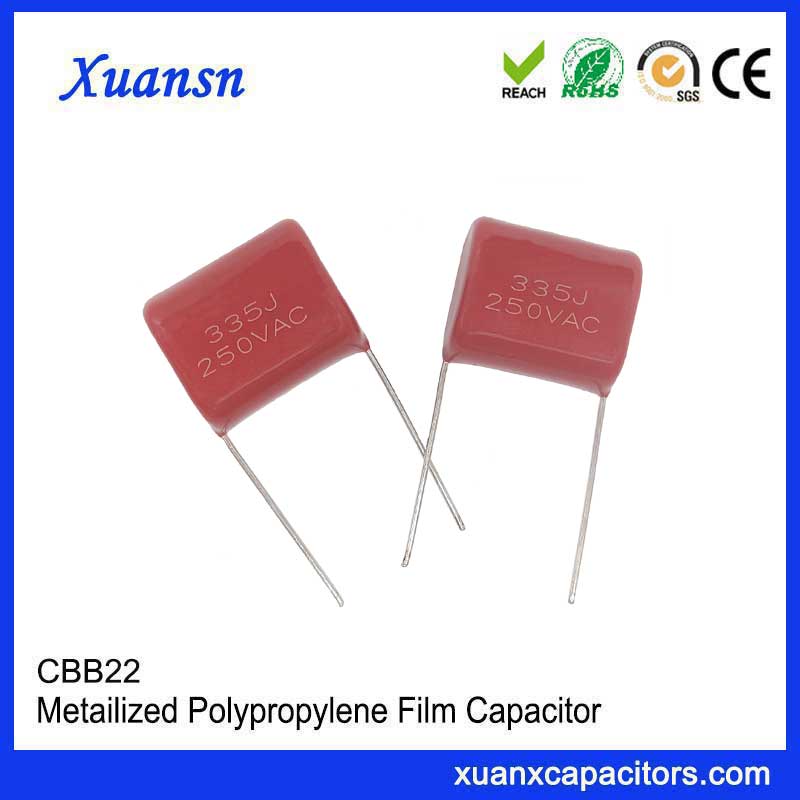

Special metallized polypropylene film AC capacitor for step down 335j250vac

W:30.0mm

H:30.0mm

T:17.5mm

P:27.5mm

D:0.8mm

Manufacturing method of film capacitor:

♦  The usual method of making thin-film capacitors is to use aluminum and other metal foils as electrodes and plastic films to overlap and wind them together.

♦  There is also a manufacturing method for film capacitors, called Metallized Film. The method is to deposit a thin layer of metal on a plastic film by vacuum evaporation to serve as an electrode. In this way, the thickness of the electrode foil can be omitted, and the volume per unit capacity of the capacitor can be reduced. Therefore, the film capacitor can be easily made into a small and large-capacity capacitor.

♦  The common MKP capacitor is the name of the metalized polypropylene film capacitor (Metailized Polypropylene Film Capacitor), and the MKT is the name of the metalized Polypropylene Film Capacitor (Metailized Polyester).

Deliver,Shipping And Serving

Lead Time:3^15day(In Stock Within 3 Days)
Pre-Sale Service:Various Technical Support, Sairple Support, Sales Guidance
Customized Service:Capacity, Voltage, Size, Trademark
Special Service:Cut Feet, Bend Feet
Warranty:Unconditional replenishment
