- Type:Aluminum Electrolytic Capacitor
- Features:High pressure resistance
- Applications: electic welding machine，power supply，frequency converters

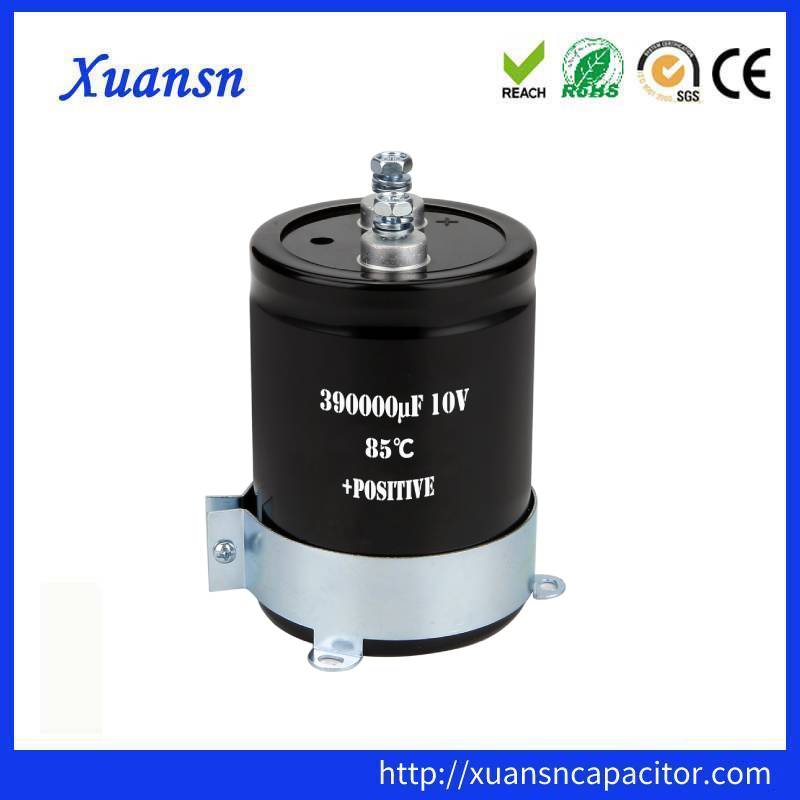

390000uf 10v electrolytic capacitor standard screw terminal type
390000uf 10v electrolytic capacitor are solder pin type electrolytic capacitors. It has excellent high frequency, long life, high reliability, high ripple current characteristics, and the size can be changed. Applications: suitable for industrial-grade inverters, servo control, switching power supplies, PC power supplies, and industrial power supplies. And there are super excellent high frequency, super long life, high ripple current, high reliability characteristics.
390000UF 10V Electrolytic Capacitor-Features
1.High rated voltage, capacitance and ripple current, stable and reliable performance, forming complete sets of unclear electric station.
2.Suitable for use in electronic and industrial equipments such as computer, programming control exchanger for power supplies filtering and energy storaging.
|Capacitance Tolerance||±20% (M) (at 20°C, 120Hz)|
|Dissipation Factor (tanδ)||tanδ (max.)=1.5 (at 20°C, 120Hz)|
|Rated ripple current (Arms/85°C, 120Hz)||17.3|
|Low Temperature Characteristics (Max. Impedance Ratio)||Z(-25°C)/Z(+20°C)=/
Z(-40°C)/Z(+20°C)=15 (at 120Hz)
|Endurance||The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 85°C.
Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤200% of the initial specified value
Leakage Current :≤The initial specified value
|Leakage Current||I≤3 CV
Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes)
|Shelf Life||At +85˚C no voltage applied after 2000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits
Leakage current : ≤Initial specified value
Cap. change : within ±20% of the initial measured value
tan δ : ≤175% of the initial specified value
Frequency correction factor for ripple current
How to order
XNS 103 M 1A D22L25 B
M:Capacitance tolerance code
