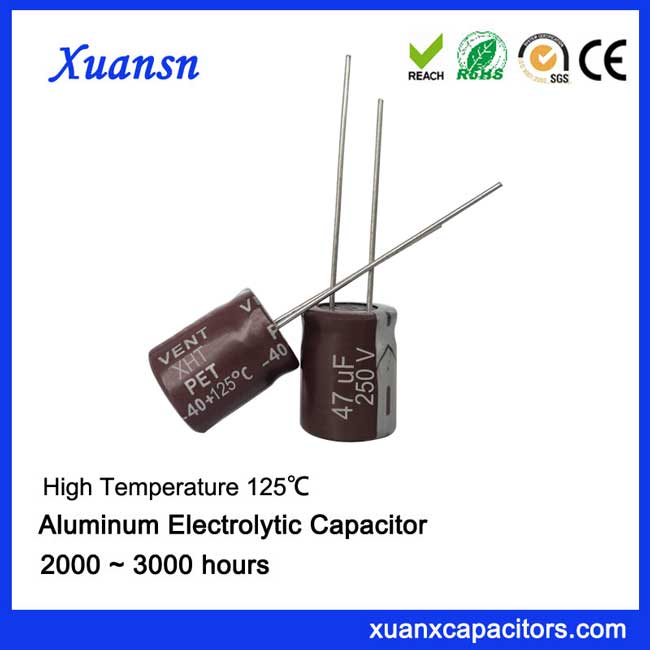

vehicle capacitor 47uf250v

  • Capacitance: 47uF
  • Rated Voltage: 250V
  • Life: 3000 hours (125℃)
  • Size(D*L):13*25mm
  • Operating Temperature:-40℃~+125℃
  • Customized Service: Capacity, Voltage, Size, Trademark
  • Special Service: Cut Feet, Bend Feet
  • Warranty: Unconditional replenishment

Description

vehicle capacitor 47uf250v Features And Applications

vehicle capacitor 47uf250v, This series dramatically improves the durability against ambient temperature and self-heat generation by adopting a newly developed high heat-stable / low resistance electrolyte along with heat resistant sealing rubber. It realizes high ripple current at the upper category temperature of 125ºC and permissible operating temperature up to 150ºC. allowing it to fit into tight mounting space within the vehicle from the use of our own high-performance production lines which are dedicated to automotive capacitors.

vehicle capacitor 47uf250v Parameter

Specifications / Model:XHT470M2ED13L25B
Type :  High Temperature Electrolytic Capacitor(125℃)
Colour:Brown Shell
Capacitance: 47uF(470)
Rated Voltage: 250V(2E)
R.C:227mArms
L.C :250uA
Life(125°C):3000h
Tanδ:0.15
Operating Temperature:-40℃~+125℃
Size(D*L):13*25mm                                     Lead Distance:5.0mm               Weight:6.0g
Packing : Bag Packing(B) Or Taping Package(T)
Polarized Design: The Longer Lead Is Positive Electrode And The Shorter One Is Negative Electrode.

xuansn factory show

vehicle capacitor 47uf250v

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.
