Feedthrough Capacitor 5000pf 250v good filtering manufacturer

Feedthrough Capacitor 5000pf 250v good filtering manufacturer

  • Type:Feedthrough Capacitor
  • Operating Temperature:-55~+125℃
  • Features:Eliminates high frequency coupling
  • Applications:Mainly used for filtering signals, data lines and AC power lines
  • Manufacturer:XUANSN

Description

The feedthrough capacitor 5000pf  250v is directly installed on the metal panel, so its grounding inductance is smaller, and there is almost no influence of lead inductance. In addition, its input and output ends are isolated by the metal plate, eliminating high-frequency coupling. These two characteristics determine the wear-through capacitor. The cardiac capacitor has a filtering effect close to the ideal capacitor.It is a ceramic dielectric, and the capacity of the ceramic capacitor will change with the change of the ambient temperature, and this capacity change will affect the filter cutoff rate of the filter. The capacity temperature change rate of ceramic capacitors is determined by the ceramic dielectric itself. Therefore, it is very important to choose an appropriate ceramic medium. The capacitors used in the filter are generally ceramic capacitors. Due to its physical structure, such ceramic capacitors are also known as feedthrough capacitors.

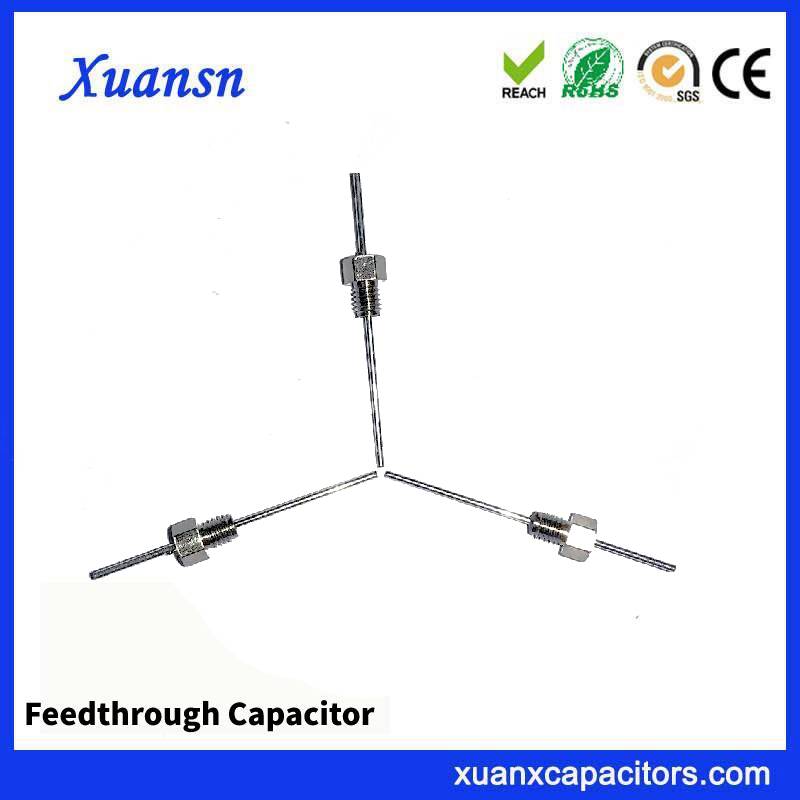

Reference picture

capacitor 5000pf 250v

Feedthrough Capacitor 5000pf 250v—Features

1.Almost no inductance

2. Filtering

Specification

Capacitance Value 5000pf
Dissipation Factor <3.5%
Tolerance -20%+80%
Material X7R
Rate Voltage 250VDC
Withstand Voltage 2000VDC
Max Current(A) 10
Insulation resistance (100VDC) 3000MΩ
Temperature Range  -55~+125℃
Installation torque 0.9 N·m
Welding Temperature ≤300℃
Welding Time 3S
Part No.: XSL8060-003DN
