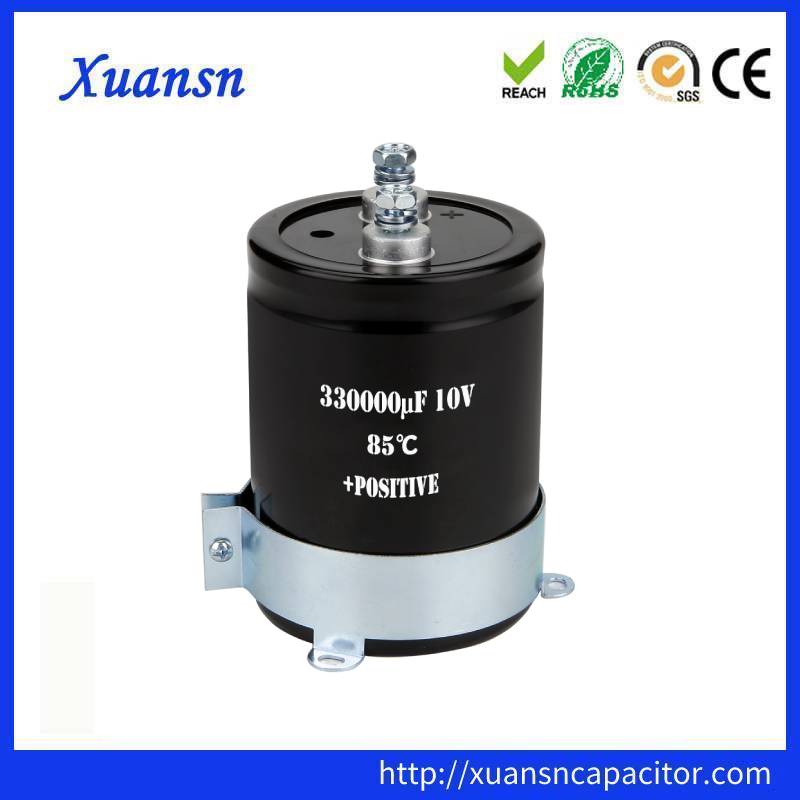

330000uf 10v capacitor aluminum electrolytic capacitors supplier

  • Type:Aluminum Electrolytic Capacitor
  • Life:2000-3000hours
  • Features:Large capacity
  • Applications:photovoltaic,color TV,computer,amplifier
  • Manufacturer:XUANSN

Description

330000uf 10v capacitor are solder pin type electrolytic capacitors. It has excellent high frequency, long life, high reliability, high ripple current characteristics, and the size can be changed. Applications: suitable for industrial-grade inverters, servo control, switching power supplies, PC power supplies, and industrial power supplies. And there are super excellent high frequency, super long life, high ripple current, high reliability characteristics.

330000UF 10V Electrolytic Capacitor-Features

1.High rated voltage, capacitance and ripple current, stable and reliable performance, forming complete sets of unclear electric station.
2.Suitable for use in electronic and industrial equipments such as computer, programming control exchanger for power supplies filtering and energy storaging.

Parameters Table

 Item Characteristics
Temperature Range -40-85℃
Specification 330000UF10V
Capacitance Tolerance ±20% (M)                                                    (at 20°C, 120Hz)
Dissipation Factor (tanδ) tanδ (max.)=1.5                                   (at 20°C, 120Hz)
Rated ripple current (Arms/85°C, 120Hz) 15.3
Low Temperature Characteristics (Max. Impedance Ratio) Z(-25°C)/Z(+20°C)=/
Z(-40°C)/Z(+20°C)=15                              (at 120Hz)
Endurance The following specifications shall be satisfied when the capacitors are restored to 20°C after DC voltage plus the rated ripple current is applied for 2,000 hours at 85°C.
Capacitance Change :≤±20% of the initial value
D.F. (tanδ):≤200% of the initial specified value
Leakage Current :≤The initial specified value
Leakage Current I≤3 CV
Where, I: Max.leakage current (μA), C: Nominal capacitance (μF),V:Rated voltage (V),(at 20 °C after 5 minutes)
Shelf Life At +85˚C no voltage applied after 2000 hours and then being stabilized at +20˚C the capacitors shall meet the following limits
Leakage current : ≤Initial specified value
Cap. change : within ±20% of the initial measured value
tan δ : ≤175% of the initial specified value

Frequency correction factor for ripple current

Rated voltage(Vdc)/Freq.(Hz) 50 120 300 1k 10k-
10 0.80 1.00 1.08 1.15 1.15

How to order

XNS        103       M     1A     D22L25           B

XNS:Series code

103:Capacitance code

M:Capacitance tolerance code

1A:Voltage code

D22L25:Size code

B:Packing number

Our advantage

1. Have 18 years experiences in capacitor industry. Be able to quickly understand the needs of customers and give feedback quickly.

2. Covers all capacitors: Electrolytic capacitors, film capacitors, safety capacitors, ceramic capacitors, super capacitors.

3.With 200 production lines, the sample delivery time is 3 days, and the bulk goods delivery time is 2 weeks.

4.The company has its own R&D team and after-sales team, providing complete pre-sale, in-sale and after-sale services.
