100UF 6.3V 125℃ SMD High Temperature Electrolytic Capacitor

  • 100uf 6.3v 125℃ chip  capacitor
  • MOQ: 1000pcs
  • Price: 0.1 to 1 usd/pcs
  • Offer free sample
  • Provide ODM/OEM services

Description

100UF 6.3V 125℃ SMD High Temperature Electrolytic Capacitor

Xuansn factory manufacturering and supply of 100UF 6.3V 125℃ SMD High Temperature Electrolytic Capacitor.

  • Opearing temperature : -40℃ ~ +125℃
  • Capacitance tolerance : 20%
  • Size : 6.3*7.7mm
  • Ripple current:  60mAmrs
  • Life: 2000 to 3000 hours

The 125℃ SMD High Temperature chip Capacitor has high stability and reliability, it is available for high density surface mounting and reflow soldering.

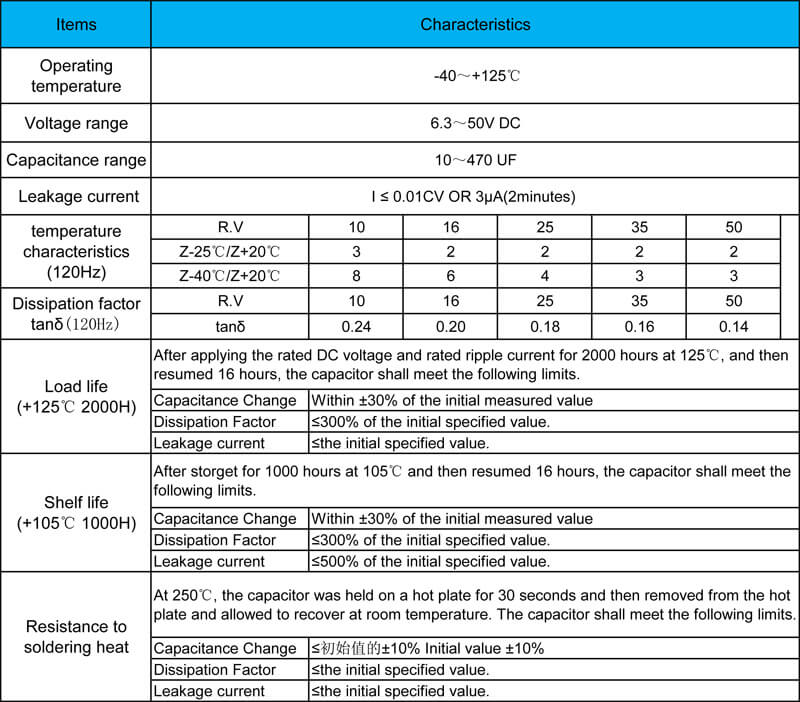

Specification of 125℃ SMD High Temperature chip Capacitor

100UF 6.3V 125℃ SMD High Temperature Electrolytic Capacitor

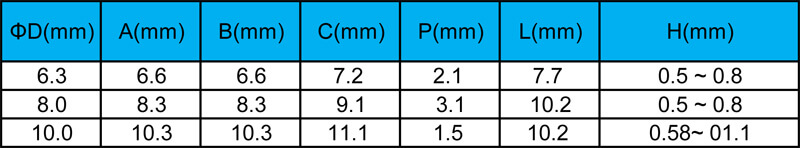

Dimensions and Marking

smd capacitor construction

smd capacitor datasheet

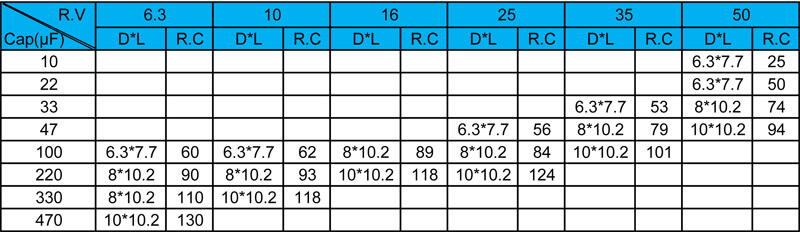

Nominal Capacitance, Rated Voltage, Rated Ripple Current and Case Size Table

smd capacitor datasheet

R.C(Rated Ripple Current): 125℃, 120Hz, mAmrs。

Frequency Coefficient of Rated Ripple Current

Frequency50Hz120Hz300Hz1Khz≥10Hz
Coefficient0.721.001.171.361.50

Our certifications

100uf 50v SMD Aluminum Electrolytic Capacitor

Xuansn factory show

100uf 50v SMD Aluminum Electrolytic Capacitor Chip

Our advantage:

  • We have a sound raw material cooperation system and cargo inspection mechanism.
  • Products with high stability, high temperature, small size, small tolerance and so on.
  • Product tolerances are strictly controlled between -15% to -10%.
  • We have the world’s most advanced production equipment, and improve the management process.
  • We can provide custom design of your needs and provide free sample for you.
  • Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.
