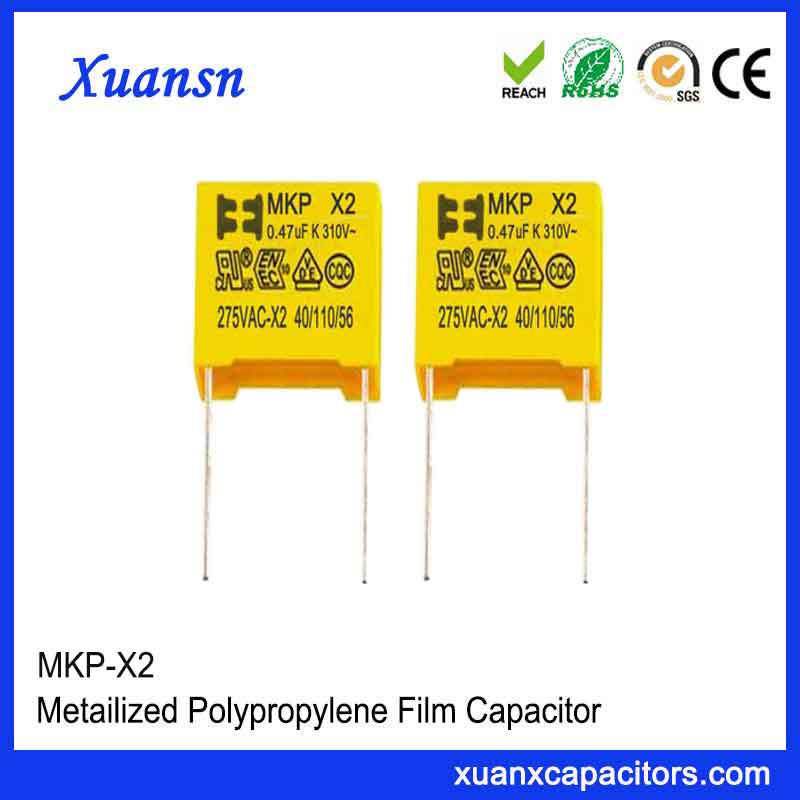

Safety capacitor X2 0.47uf275VAC factory

Capacitance: 0.47uF（474）
Rated voltage(AC): 275VAC/310VAC
Lead Pitch:22.5mm
Color: yellow
Special Service: Cut Feet, Bend Feet
Warranty: Unconditional replenishment

Description

Safety capacitor X2 0.47uf275VAC

The safety capacitor X2 0.47uf275VAC is mainly used for EMI suppression of the L/N crossover of the power input, and is used in parallel with the input port. Widely used in high-frequency, DC, AC and pulse circuits, designed for large-screen color TV S correction circuit.

Safety capacitor X2 0.47uf275VAC

Type: Safety Capacitor X2
Color: Yellow
Capacitance:0.47uF（823）
Rated Voltage(AC): 275VAC/310VAC
Lead Pitch:22.5mm
Certification：UL,VDE.CQC.KC
Tolerance: ±10%（K）
Temperature Range: -25 To 105°C
Rated Freq(HZ): 1KHZ
W:26.5mm
H:20.0mm
P:22.5mm
T:10.0mm
