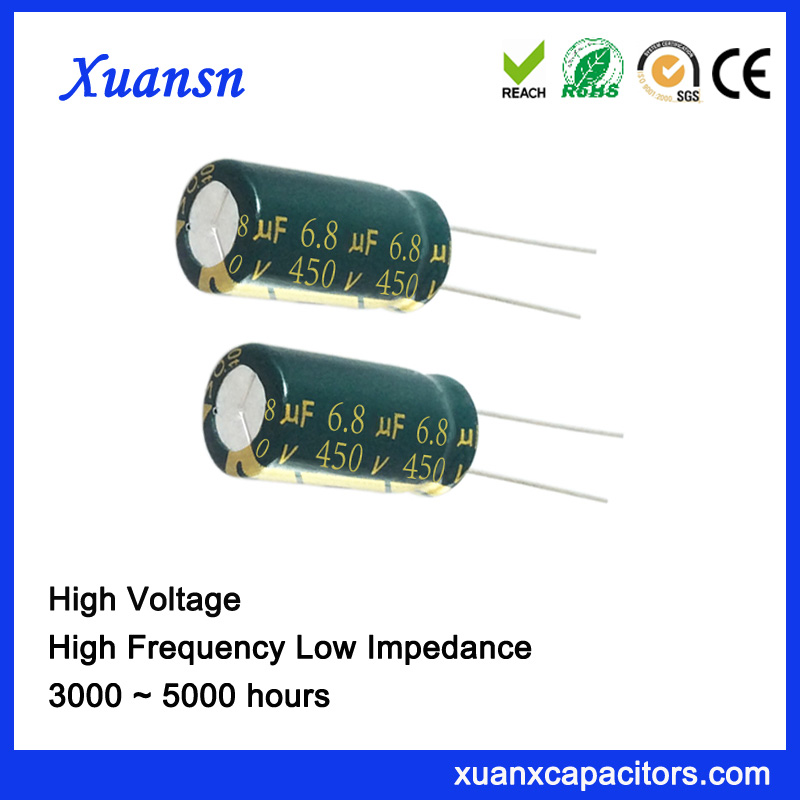

audio note electrolytic capacitors 6.8uf450v

  • Capacitance: 6.8uF
  • Rated Voltage: 450V
  • Life: 4000 hours
  • Size(D*L):8*14,10*12.5,10*16mm
  • Pre-Sale Service: Various Technical Support, Sample Support, Sales Guidance
  • After Sales Service: Requirements , Precautions

Description

audio note electrolytic capacitors 6.8uf450v Features And Applications

audio note Electrolytic capacitors 6.8uf450v, high voltage capacitor, large ripple current, low ESR. When selecting a capacitor, in addition to considering the ripple current and voltage, a low equivalent series resistance (ESR) capacitor should be selected. When a voltage transient occurs frequently on the input bus (the voltage drops instantaneously due to a short circuit or an accident), the low ESR capacitor can provide the module with a certain period of sustain voltage.

audio note electrolytic capacitors 6.8uf450v Parameter

Specifications / Model:CDXHH6R8M2WD8L14B/T
                                      CDXHH6R8M2WD10L13B/T
                                      CDXHH6R8M2WD10L16B/T
Type: Low Impedance Electrolytic Capacitor
Colour:Green Shell And Golden Font
Capacitance: 6.8uF(6R8)                                    Rated Voltage: 450V(2W)
Size(D*L): 8*14,10*12.5,10*16mm                     Solder Pin:3.5,5.0mm
R.C:56mArms                                                     L.C:76.2uA
Endurance(105°C):4000h
Tanδ:0.2
weight:1.3,1.59,1.95g
Packing : Bag Packing(B) Or Taping Package(T)
Polarized Design: The Longer Lead Is Positive Electrode And The Shorter One Is Negative Electrode.

factory show

electrolytic capacitors 6.8uf450v

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

Email: [email protected]

Pho(whatsapp): +86-18825879082

Skype: Coco.PSH

Website:capacitorsfilm.com
