Anti-high voltage capacitor CBB21 684J630V P=20mm factory wholesale

Home » Products » Anti-high voltage capacitor CBB21 684J630V P=20mm factory wholesale

Anti-high voltage capacitor CBB21 684J630V P=20mm factory wholesale

  • Type: Film capacitor
  • Deviation: ±5% (J) ±10% (K)
  • Application: General
  • Packing type: through hole
  • Warranty: Unconditional replenishment


Description

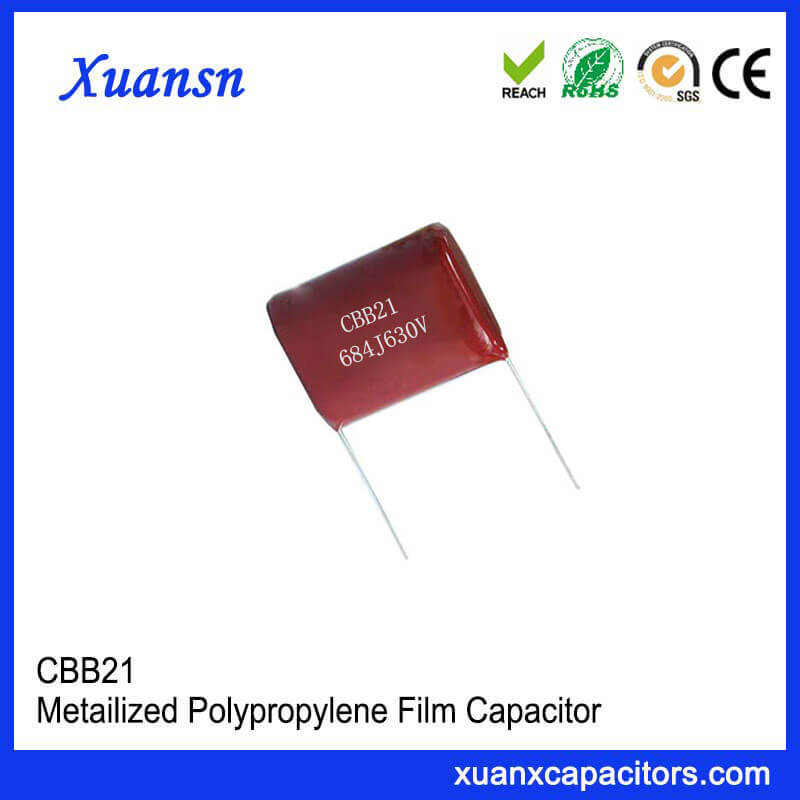

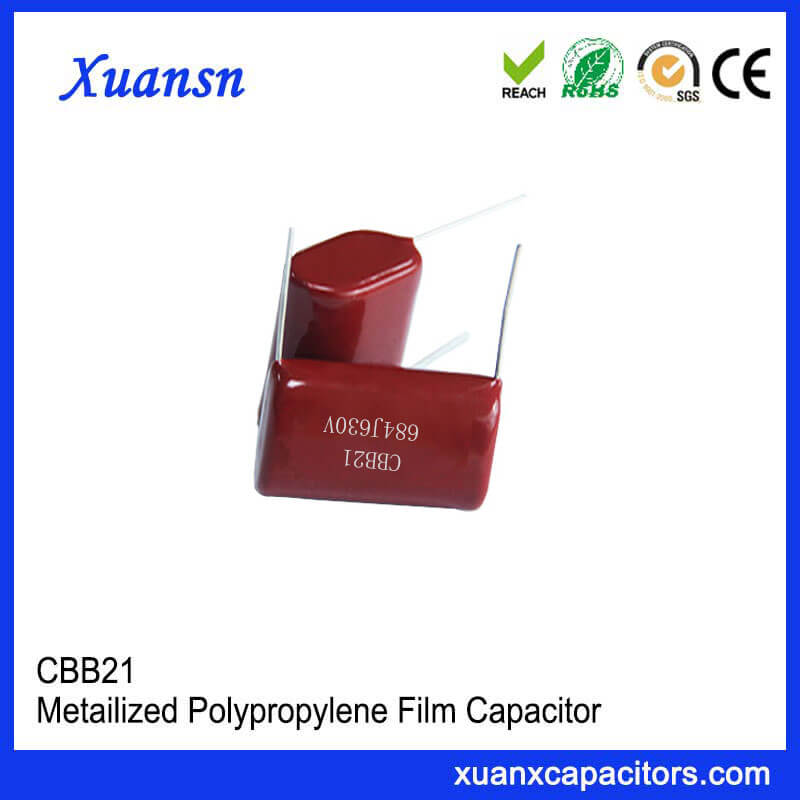

Anti-high voltage capacitor CBB21 684J630V P=20mm factory wholesale

The anti-high voltage capacitor CBB21 is encapsulated with flame-retardant insulation material, one-way lead, with outsourcing, and epoxy resin sealing. It has the characteristics of excellent electrical performance, good reliability, and low loss.

CBB21 capacitor 684J 630V for energy saving lamp

Type :  metalized polyester film capacitor
Colour:Orange red
Capacitance:0.68uf (684)
Rated Voltage:630V
Capacitance Tolerance: ±5%(J),±10%(K)
Lead Pitch(mm):20.0mm
Temperature Range: -25 To 85°C
W:24.0mm
H:15.0mm
D:0.8mm
T:8.5mm

104J450V metalized film Cbb Capacitor Air Conditioner CapacitorCBB21
