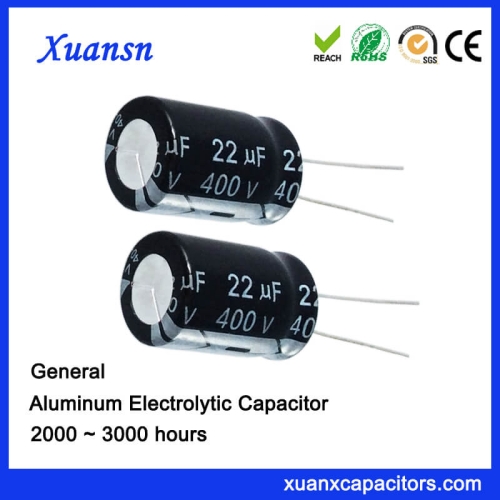

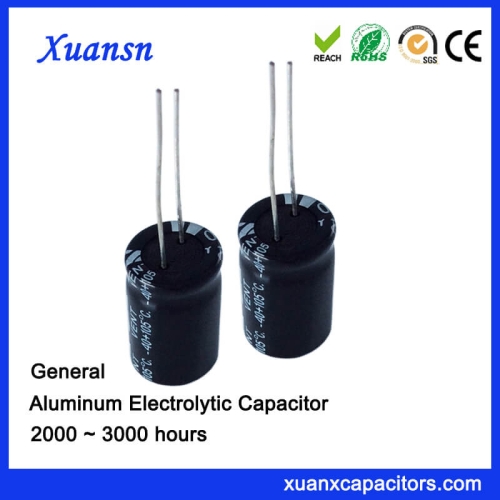

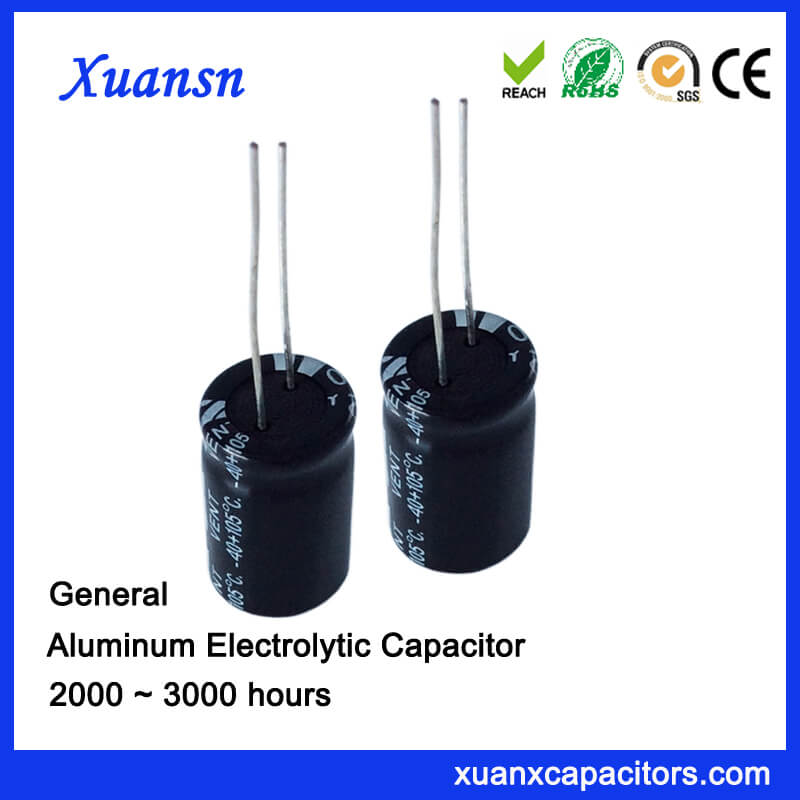

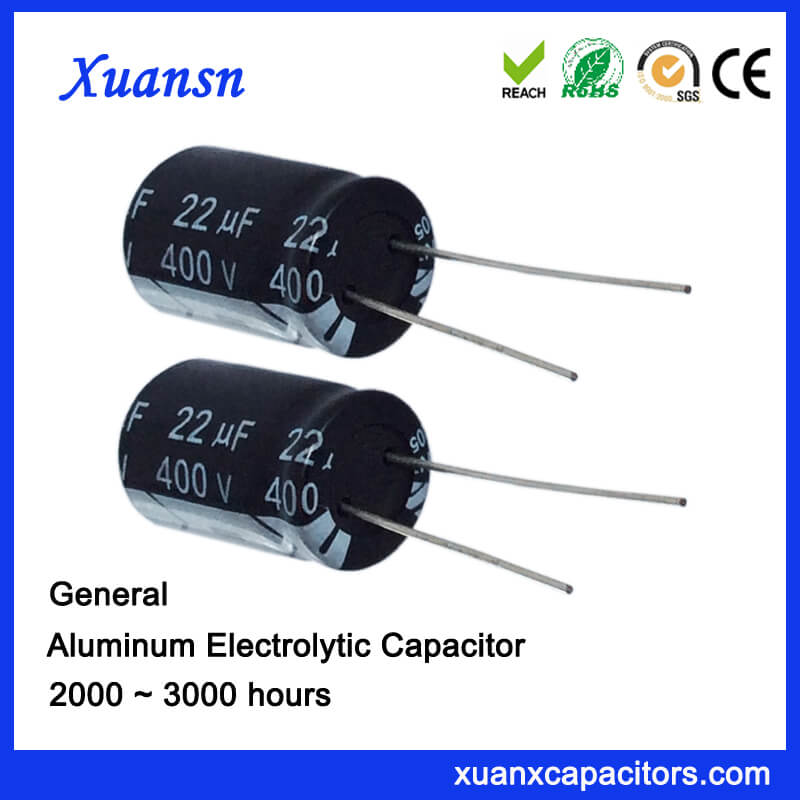

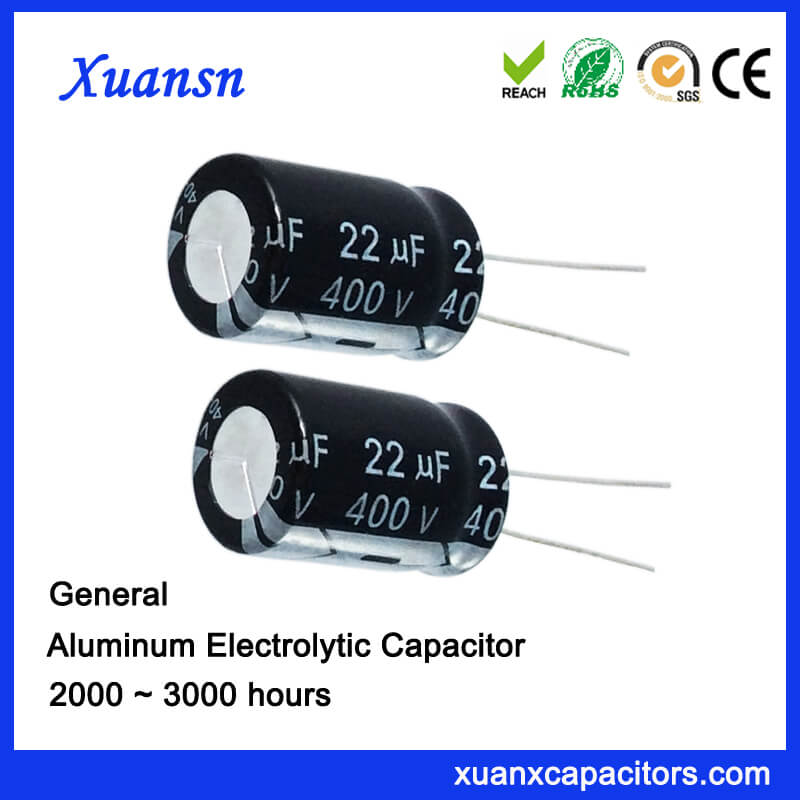

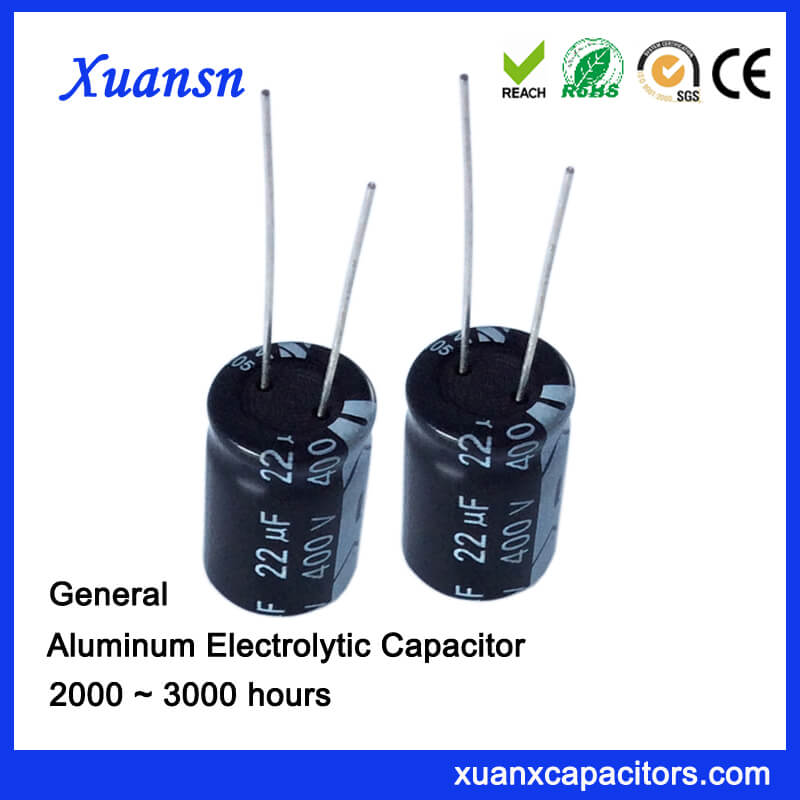

22uf 400v High Voltage General Aluminum Capacitor

22uf 400v High Voltage General Aluminum Capacitor

  • 22uf 400v aluminum electrolytic capacitor
  • Load life: 3000 hours at +105°c
  • Size:10*17,13*21 and 13*17mm
  • MOQ: 1000PCS
  • Free Sample
  • OEM/ODM services

Description

22uf 400v High Voltage General Aluminum Capacitor

22uf 400v High Voltage General Aluminum Capacitor, our general size have 10*16mm, 13*21mm and 13*17mm, its ripple current is 155mAmrs at 85℃ 120Hz. And its load life is 3000 hours at 105℃.

Standard radial aluminum electrolytic capacitors is suitable for charger, adapter, air conditioning and rear projection TV.

We passed Rosh environmental certification, RECH  certification and SGS quality management certification system.

Specification of 1000UF Aluminum Electrolytic Capacitors For Adapter

22uf 400v High Voltage General Aluminum Capacitor

Dimensions(mm)

22uf 400v High Voltage General Aluminum Capacitor

ΦD 5 6.3 8 10 13 16 18
P 2.0 2.5 3.5 5.0 5.0 7.5 7.5
Φd 0.5 0.5 0.5 0.6 0.6 0.8 0.8
α 1.0 2.0
β 0.5

Frequency coefficient of rated ripple current

Frequency(Hz) 50 120 1k 10k 100k
0.1 to 47 uf 0.75 1 1.35 1.55 2
68 to 680 uf 0.8 1 1.25 1.34 1.5
1000 to 15000 uf 0.85 1 1.1 1.13 1.15

Temperature Coefficient

Tem(℃) +45 +65 +85
Factor 1.6 1.35 1.00

Standard Ratings(at 120Hz, 85°c)

22uf 400v High Voltage General Aluminum Capacitor

22uf 400v High Voltage General Aluminum Capacitor

Our certifications

long life aluminum capacitor manufacturers

Our advantage:

  • We have a sound raw material cooperation system and cargo inspection mechanism.
  • Products with high stability, high temperature, small size, small tolerance and so on.
  • Product tolerances are strictly controlled between -15% to -10%.
  • We have the world’s most advanced production equipment, and improve the management process.
  • We can provide custom design of your needs and provide free sample for you.
  • Our products comply with the RoHS Directive and the factory conforms to the ISO 9001 management system.

FAQ:

Q1. Can i have some samples for capacitors?

 A:  Yes, welcome sample to test and check quality,factory brand samples are free.

Q2. What about the lead time?

A:  The sample needs 3-5days, the mass products needs 2 weeks for order quantity.

Q3. How do you ship the goods and how long does it take to arrive?

A:   We usually ship by DHL,UPS,FEDEX or TNT, it usually takes 3-5 days to arrive.Airline and sea shipping also optional.

Q4. Is it OK to print my logo on capacitor?

A:   Yes,pls inform us formally before our production and confirm the design firstly based on our sample

Q5. Do you offer guarantee for the products?

A:   Yes,we offer 2-3years warranty to our products.

Q6. How to deal with the faulty?

A:   If the item you purchase from factory beacuse of quality problems, you can return them to us for replacement or refund. And any items returned must be in their original condition to qualify for a refund or replacement.

If you have any interesting and problems, please contact us!

Email: [email protected]

Ph (whatsapp): +86-18825879082

Skype: Coco.PSH

Website:  xuanxcapacitors.ru
