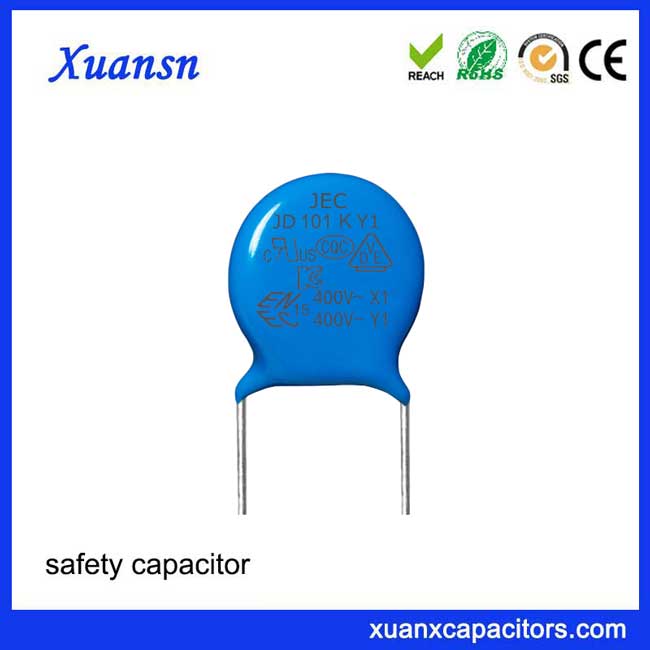

101k400v function of safety capacitor,ac capacitor,Y1 capacitor

101k400v function of safety capacitor

Type: safety capacitor
Capacitance: 100pF(101)
Rated Voltage(AC): 400VAC
Tolerance:±10%（K）,±20%（M）
Withstand voltage(AC)：4000VAC
Color: Blue
Special Service: Cut Feet, Bend Feet
Warranty: Unconditional replenishment

Description

101k400v function of safety capacitor Features And Applications

101k400v function of safety capacitor, has two temperature characteristics of Y5U and Y5P. Ceramic dielectric with high dielectric constant and flame retardant epoxy resin package for suppression of power supply electromagnetic interference, filtering, antenna coupling, jumper and bypass circuits. Meets AC capacitor standards and is certified for safety.

101k400v function of safety capacitor Parameter

Type : safety capacitor
Colour：Blue
Capacitance:100pF(101)
Rated Voltage(AC):400VAC
Withstand voltage(AC)：4000VAC
Tolerance:±10%（K）,±20%（M）
Material Properties：Y5U,Y5P
Temperature range: -25 to 85°C
Tanδ：0.025~0.05
D:7.0mm
F:9.5mm
T:6.0mm
Rated Freq(HZ): 1KHZ
Certification：UL,SEMKO,SEV,FIMKO,NEMKO,DEMKO,VDE.CQC.KC
