The post Snubber capacitors 105K power supply IGBT film capacitor appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> Snubber capacitors 105K 630V are double-sided metallized polypropylene film capacitors used in power conversion applications requiring stable capacitance and low dissipation factor to handle high voltage, high dV/dt and high ripple current.

Snubber capacitors Typical Applications：

• Silicon-controlled rectifier (SCR and IGBT)and SiC (e.g. MOSFET) commutation circuits.
• DC Link, Snubber, resonant converters, and tank circuits.

Specifications

Reference Standard GB/T 17702 (IEC 61071)
Climatic Category 40/110/56/B
Maximum Permissible Case TEMP (Tcase) -40℃~110℃
Application IGBT Snubbers
Capacitance 1.0uf
Rated Voltage 630VDC
Capacitance Tolerance ± 5% (J)、± 10% (K)
Construction (Plastic or Metal) Radial boxed and terminals direct mounting
Leads It has a tinned brass lug direct IGBT mounting
Packaging Packed in cardboard trays with protection for the terminals
Industry Lighting products, Home electronics, Automotive electronics

C（uf） W±1.0 H±1.0 T±1.0 dv/dt(v/us） ESR@100KHz（mΩ） Ls（nH） I max 100KHz@70℃（A）
1.0 37 30 16 950 5 21 14

Our advantage

1. Have 18 years experiences in capacitor industry. Be able to quickly understand the needs of customers and give feedback quickly.

2. Covers all capacitor series : Electrolytic capacitors, film capacitors, safety capacitors, ceramic capacitors, super capacitors.

3.With 200 capacitor production lines, the sample delivery time is 3 days, and the bulk goods delivery time is 2 weeks.

4.The company has its own R&D team and after-sales team, providing complete pre-sale, in-sale and after-sale services.

Contact us

We are professional capacitor manufacturer, and  have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

E-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco.psh

Website：xuanxcapacitors.com

Film capcitor website：https://capacitorsfilm.com

Solid capacitor website：https://solidcapacitor.com

Other sites：https://xuansncapacitor.com，http://www.xscapacitor.com

The post Snubber capacitors 105K power supply IGBT film capacitor appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> 166J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies https://www.xuanxcapacitors.com/capacitors/166j-1100m4-metallized-polypropylene-film-capacitors-for-frequency-converters-industrial-and-high-end-power-supplies/ Sat, 23 Apr 2022 05:14:04 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=23395 Type:  Film Capacitor Deviation: ±5% (J) ±10% (K) Operating Temperature：-40℃-105℃ Features：High stability Application：inverters, industrial and high-end power supplies

The post 166J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> 166J 1100M4 Metallized polypropylene film capacitors have excellent electrical characteristics, high stability and long life, which can meet a variety of different applications. Capacitor manufacturers are continually improving this product to provide greater capacitance in a smaller package size. Capacitor manufacturers can optimize the characteristics of metallized film capacitors by selecting the appropriate dielectric for the specific application.

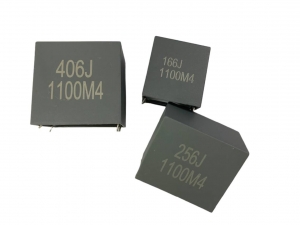

166J 1100M4 Metallized Polypropylene Film Capacitors-SMC4

)166J 1100M4 Metallized Polypropylene Film Capacitors166J 1100M4 Metallized Polypropylene Film Capacitors166J 1100M4 Metallized Polypropylene Film Capacitors166J 1100M4 Metallized Polypropylene Film Capacitors

specifications

Reference Standard GB/T 17702(IEC 61071)
Climate category 40/105/56
 Operating temperature range -40℃-105℃
Rated voltage 500Vdc,600Vdc,800Vdc,900Vdc,1000Vdc,1100Vdc,1200Vdc
Capacitance deviation J（±5%）,k(±10%)
Voltage proof 1.5UN(10s)
Insulation resistance ≧1000S(20℃,100Vdc,1min)
Shell color Black,White,Red
Self inductance ＜1nH per mm of lead spacing
Maximum peak current ↑=C.dv/dt
Expected life 100000hrs@Un,θHS=70℃

Features:

1.Metallized polypropylene membrane structure
2.good electrical properties
3.Plastic case package (UL94V-0), resin filled
4.High-performance DC filter applications
(Such as: inverters, industrial and high-end power supplies, solar inverters, charging piles, etc.)

Polypropylene film capacitors are available with voltage ratings of 400vac or higher to meet the requirements of industrial three-phase applications and professional equipment. They can also be used in switching power supplies, frequency discrimination and filter circuits, and energy storage and sample-and-hold applications. Additionally, ac and pulse capacitors can be optimized for applications where steep pulses are present, such as electronic ballasts, motor controllers, switch mode power supplies (smps), crt televisions and monitors or buffers. These applications typically employ bimetallized polypropylene film structures with low loss dielectrics capable of withstanding high voltage and high pulse load applications at high frequencies.

Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：xuanxcapacitors.com

The post 166J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> 256J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies https://www.xuanxcapacitors.com/capacitors/256j-1100m4-metallized-polypropylene-film-capacitors-for-frequency-converters-industrial-and-high-end-power-supplies/ Sat, 23 Apr 2022 05:08:29 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=23388 Type:  Film Capacitor Deviation: ±5% (J) ±10% (K) Operating Temperature：-40℃-105℃ Features：High stability Application：inverters, industrial and high-end power supplies

The post 256J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> 256J 1100M4 Metallized polypropylene film capacitors have excellent electrical characteristics, high stability and long life, which can meet a variety of different applications. Capacitor manufacturers are continually improving this product to provide greater capacitance in a smaller package size. Capacitor manufacturers can optimize the characteristics of metallized film capacitors by selecting the appropriate dielectric for the specific application.

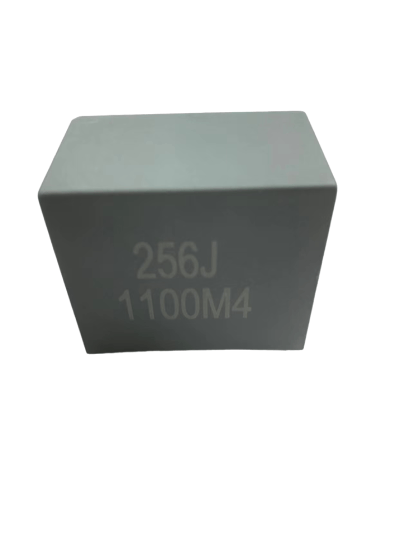

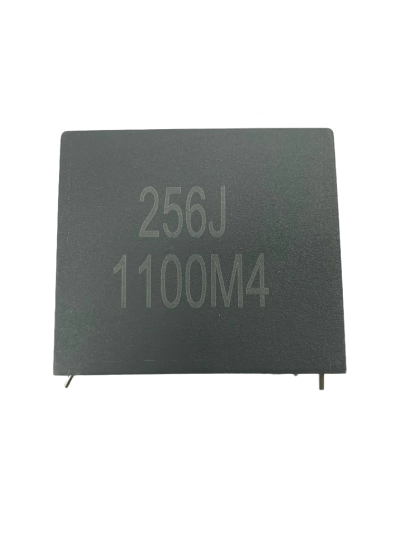

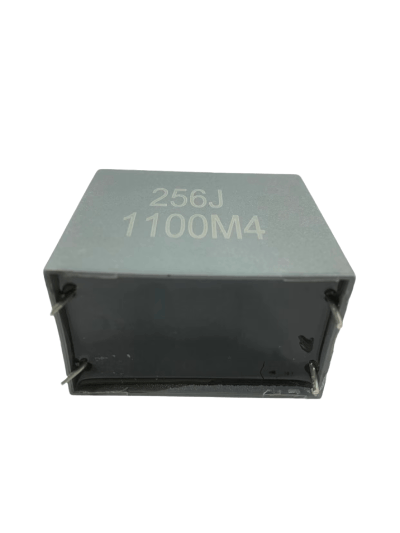

256J 1100M4 Metallized Polypropylene Film Capacitors-SMC4

256J 1100M4 Metallized Polypropylene Film Capacitors-SMC4256J 1100M4 Metallized Polypropylene Film Capacitors-SMC4256J 1100M4 Metallized Polypropylene Film Capacitors-SMC4256J 1100M4 Metallized Polypropylene Film Capacitors-SMC4

specifications

Reference Standard GB/T 17702(IEC 61071)
Climate category 40/105/56
 Operating temperature range -40℃-105℃
Rated voltage 500Vdc,600Vdc,800Vdc,900Vdc,1000Vdc,1100Vdc,1200Vdc
Capacitance deviation J（±5%）,k(±10%)
Voltage proof 1.5UN(10s)
Insulation resistance ≧1000S(20℃,100Vdc,1min)
Shell color Black,White,Red
Self inductance ＜1nH per mm of lead spacing
Maximum peak current ↑=C.dv/dt
Expected life
100000hrs@Un,θHS=70℃

Features:

1.Metallized polypropylene membrane structure
2.good electrical properties
3.Plastic case package (UL94V-0), resin filled
4.High-performance DC filter applications
(Such as: inverters, industrial and high-end power supplies, solar inverters, charging piles, etc.)

Polypropylene film capacitors are available with voltage ratings of 400vac or higher to meet the requirements of industrial three-phase applications and professional equipment. They can also be used in switching power supplies, frequency discrimination and filter circuits, and energy storage and sample-and-hold applications. Additionally, ac and pulse capacitors can be optimized for applications where steep pulses are present, such as electronic ballasts, motor controllers, switch mode power supplies (smps), crt televisions and monitors or buffers. These applications typically employ bimetallized polypropylene film structures with low loss dielectrics capable of withstanding high voltage and high pulse load applications at high frequencies.

Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：xuanxcapacitors.com

The post 256J 1100M4 Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies https://www.xuanxcapacitors.com/capacitors/505j-1100px-406j-106j-256j-1100m4-metallized-polypropylene-film-capacitors-for-frequency-converters-industrial-and-high-end-power-supplies/ Sat, 09 Apr 2022 08:11:29 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=23327 Type:  Film Capacitor Deviation: ±5% (J) ±10% (K) Operating Temperature：-40℃-105℃ Features：High stability Application：inverters, industrial and high-end power supplies

The post Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> Metallized polypropylene film capacitors have excellent electrical characteristics, high stability and long life, which can meet a variety of different applications. Capacitor manufacturers are continually improving this product to provide greater capacitance in a smaller package size. Capacitor manufacturers can optimize the characteristics of metallized film capacitors by selecting the appropriate dielectric for the specific application.

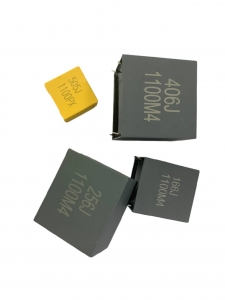

Metallized Polypropylene Film Capacitors-SMC4

Metallized Polypropylene Film Capacitors  Metallized Polypropylene Film CapacitorsMetallized Polypropylene Film Capacitors

specifications

Reference Standard GB/T 17702(IEC 61071)
Climate category
40/105/56
 Operating temperature range -40℃-105℃
Rated voltage 500Vdc,600Vdc,800Vdc,900Vdc,1000Vdc,1100Vdc,1200Vdc
Capacitance deviation J（±5%）,k(±10%)
Voltage proof 1.5UN(10s)
Insulation resistance ≧1000S(20℃,100Vdc,1min)
Shell color Black,White,Red
Self inductance ＜1nH per mm of lead spacing
Maximum peak current ↑=C.dv/dt
Expected life 100000hrs@Un,θHS=70℃

Features:

1.Metallized polypropylene membrane structure
2.good electrical properties
3.Plastic case package (UL94V-0), resin filled
4.High-performance DC filter applications
(Such as: inverters, industrial and high-end power supplies, solar inverters, charging piles, etc.)

Polypropylene film capacitors are available with voltage ratings of 400vac or higher to meet the requirements of industrial three-phase applications and professional equipment. They can also be used in switching power supplies, frequency discrimination and filter circuits, and energy storage and sample-and-hold applications. Additionally, ac and pulse capacitors can be optimized for applications where steep pulses are present, such as electronic ballasts, motor controllers, switch mode power supplies (smps), crt televisions and monitors or buffers. These applications typically employ bimetallized polypropylene film structures with low loss dielectrics capable of withstanding high voltage and high pulse load applications at high frequencies.

Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：xuanxcapacitors.com

The post Metallized Polypropylene Film Capacitors for frequency converters, industrial and high-end power supplies appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> CBB61 Capacitors polyester film 250VAC used for starting and running single-phase motors https://www.xuanxcapacitors.com/capacitors/cbb61-capacitors-polyester-film-250vac-used-for-starting-and-running-single-phase-motors/ Sat, 19 Mar 2022 08:34:36 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=23240 Type: Composite Film Capacitor Deviation: ±5% (J) ±10% (K) Operating Temperature：-40℃-85℃ Packing type: through hole Warranty: Unconditional replenishment

The post CBB61 Capacitors polyester film 250VAC used for starting and running single-phase motors appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> CBB61 Capacitors polyester film 250VAC is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

CBB61 Capacitors polyester film 250VAC — CBB61

                            250VAC Polypropylene Film Capacitors               250VAC Polypropylene Film Capacitors

specifications

Climate category/flame retardant rating 40/85/21/B
 Operating temperature range -40℃-85℃
 Rated voltage 450Vac for S3 ，250V/300V/350V/400V/450Vac for S0
Capacitance range 1.0μf(105)-50μf(506） Class-S0     1.0μf（105）-5μf（505) Class-S3
Capacitance deviation ±5%(J)
Insulation resistance ≧3000S(20℃,100V,1min)
Dissipation factor 0.2%Max,at1KHz and 25℃

Features:
1. Encapsulated in plastic shell, with good appearance consistency.
2. Small loss at high frequency, suitable for larger current.
3. High insulation resistance, good self-healing and long life.
 Structure:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin potting, single capacitor core or multi-capacitor core can be installed in one shell.
3. The installation components include plastic ears and iron ears.
4. The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.
Conditions of use:
1. Altitude: ≤2000m.
2. Residual voltage when put in: no more than 10% of the rated voltage.
3. Maximum allowable voltage: no more than 1.1 times the rated voltage.
4. Maximum allowable current: no more than 1.3 times the rated current.

Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：xuanxcapacitors.com

The post CBB61 Capacitors polyester film 250VAC used for starting and running single-phase motors appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> Special metallized polypropylene film AC capacitor for step down 155j250vac https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac335j-best-selling-products-copy/ https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac335j-best-selling-products-copy/#respond Tue, 14 Sep 2021 07:33:51 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=22206 Type: Film capacitor Deviation: ±5% (J) ±10% (K) Application: General Packing type: through hole Warranty: Unconditional replenishment Inquiry Now

The post Special metallized polypropylene film AC capacitor for step down 155j250vac appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> Special metallized polypropylene film AC capacitor for step down 155j250vac

AC capacitor for step down 155j250vac Features

  • Excellent self-healing performance, able to withstand surge voltage impact
  • Excellent capacitance stability under long-term load
  • Flame retardant epoxy powder encapsulation

The main purpose

  • Specially designed for series connection of 100-240vac power supply
  • Capacitor step-down circuit occasions, such as electricity meters, LED drive modules

Specifications

Reference Standard GB/T 14579 (IEC 60384-17)
Climate Category 55/85/21
Operating Temperature Range -40℃~+85℃

(+85℃to+105℃:decreasing factor 1.25%per ℃for UR)
Capacitance Range 0.01UF~4.7UF
Rated Voltage 230VAC,250VAC,300VAC
Capacitance Deviation ±5%(J) 、±10%（K）
Voltage Proof 1.5UR(5s)
Dissipation Factor ≤0.1%(20℃,1kHz)
Insulation Resistance UR≤100V     CR≤0.33UF  IR≥15000MΩ

                       CR＞0.33UF  IR≥5000S

Product show

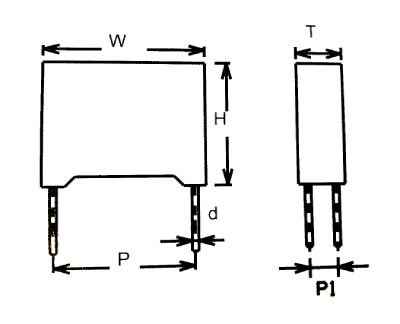

Special metallized polypropylene film AC capacitor for step down 335j250vac

W:30.0mm

H:24.0mm

T:11.5mm

P:27.5mm

D:0.8mm

Manufacturing method of film capacitor：

♦  The usual method of making thin-film capacitors is to use aluminum and other metal foils as electrodes and plastic films to overlap and wind them together.

♦  There is also a manufacturing method for film capacitors, called Metallized Film. The method is to deposit a thin layer of metal on a plastic film by vacuum evaporation to serve as an electrode. In this way, the thickness of the electrode foil can be omitted, and the volume per unit capacity of the capacitor can be reduced. Therefore, the film capacitor can be easily made into a small and large-capacity capacitor.

♦  The common MKP capacitor is the name of the metalized polypropylene film capacitor (Metailized Polypropylene Film Capacitor), and the MKT is the name of the metalized Polypropylene Film Capacitor (Metailized Polyester).

Deliver,Shipping And Serving

Lead Time： 3^15day(In Stock Within 3 Days)
Pre-Sale Service： Various Technical Support, Sairple Support, Sales Guidance
Customized Service： Capacity, Voltage, Size, Trademark
Special Service： Cut Feet, Bend Feet
Warranty： Unconditional replenishment

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：  www.xuanxcapacitors.com




The post Special metallized polypropylene film AC capacitor for step down 155j250vac appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac335j-best-selling-products-copy/feed/ 0 AC capacitor 250VAC335j best selling products https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china-copy/ https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china-copy/#respond Tue, 14 Sep 2021 07:13:50 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=22202 Type: Film capacitor Deviation: ±5% (J) ±10% (K) Application: General Packing type: through hole Warranty: Unconditional replenishment Inquiry Now

The post AC capacitor 250VAC335j best selling products appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> AC capacitor 250VAC335j best selling products

AC capacitor 250VAC335j Features

  • The capacitor uses metalized polypropylene film as the medium.
  • High frequency loss is small.
  • The internal temperature rise is small.
  • Good insulation performance and good self-healing effect.
  • Flame retardant epoxy powder encapsulation (UL94 V-0).

The main purpose

  • It is widely used in high frequency, DC, AC and pulse circuits.
  • It is suitable for color TV S correction circuit that requires small size and excellent performance.
  • Specially designed for S-correction circuit and LED lighting driver of large screen monitors and color TVs.

Specifications

Reference Standard GB/T 14579 (IEC 60384-17)
Climate Category 55/85/21
Operating Temperature Range -40℃~+85℃

(+85℃to+105℃:decreasing factor 1.25%per ℃for UR)
Capacitance Range 0.01UF~4.7UF
Rated Voltage 230VAC,250VAC,300VAC
Capacitance Deviation ±5%(J) 、±10%（K）
Voltage Proof 1.5UR(5s)
Dissipation Factor ≤0.1%(20℃,1kHz)
Insulation Resistance UR≤100V     CR≤0.33UF  IR≥15000MΩ

                       CR＞0.33UF  IR≥5000S

Product show

Special metallized polypropylene film AC capacitor for step down 335j250vac

W:30.0mm

H:30.0mm

T:17.5mm

P:27.5mm

D:0.8mm

Manufacturing method of film capacitor：

♦  The usual method of making thin-film capacitors is to use aluminum and other metal foils as electrodes and plastic films to overlap and wind them together.

♦  There is also a manufacturing method for film capacitors, called Metallized Film. The method is to deposit a thin layer of metal on a plastic film by vacuum evaporation to serve as an electrode. In this way, the thickness of the electrode foil can be omitted, and the volume per unit capacity of the capacitor can be reduced. Therefore, the film capacitor can be easily made into a small and large-capacity capacitor.

♦  The common MKP capacitor is the name of the metalized polypropylene film capacitor (Metailized Polypropylene Film Capacitor), and the MKT is the name of the metalized Polypropylene Film Capacitor (Metailized Polyester).

Deliver,Shipping And Serving

Lead Time： 3^15day(In Stock Within 3 Days)
Pre-Sale Service： Various Technical Support, Sairple Support, Sales Guidance
Customized Service： Capacity, Voltage, Size, Trademark
Special Service： Cut Feet, Bend Feet
Warranty： Unconditional replenishment

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：  www.xuanxcapacitors.com




The post AC capacitor 250VAC335j best selling products appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china-copy/feed/ 0 AC capacitor 250VAC225j made in China https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china/ https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china/#respond Tue, 14 Sep 2021 06:31:18 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=22197 Type: Film capacitor Deviation: ±5% (J) ±10% (K) Application: General Packing type: through hole Warranty: Unconditional replenishment Inquiry Now

The post AC capacitor 250VAC225j made in China appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> AC capacitor 250VAC225j made in China

AC capacitor 250VAC225j Features

  • The capacitor uses metalized polypropylene film as the medium.
  • High frequency loss is small.
  • The internal temperature rise is small.
  • Good insulation performance and good self-healing effect.
  • Flame retardant epoxy powder encapsulation (UL94 V-0).

The main purpose

  • It is widely used in high frequency, DC, AC and pulse circuits.
  • It is suitable for color TV S correction circuit that requires small size and excellent performance.

Specifications

Reference Standard GB/T 14579 (IEC 60384-17)
Climate Category 55/85/21
Operating Temperature Range -40℃~+85℃

(+85℃to+105℃:decreasing factor 1.25%per ℃for UR)
Capacitance Range 0.01UF~4.7UF
Rated Voltage 230VAC,250VAC,300VAC
Capacitance Deviation ±5%(J) 、±10%（K）
Voltage Proof 1.5UR(5s)
Dissipation Factor ≤0.1%(20℃,1kHz)
Insulation Resistance UR≤100V     CR≤0.33UF  IR≥15000MΩ

                       CR＞0.33UF  IR≥5000S

Product show

Special metallized polypropylene film AC capacitor for step down 335j250vac

W:30.0mm

H:27.5mm

T:14.0mm

P:27.5mm

D:0.8mm

Manufacturing method of film capacitor：

♦  The usual method of making thin-film capacitors is to use aluminum and other metal foils as electrodes and plastic films to overlap and wind them together.

♦  There is also a manufacturing method for film capacitors, called Metallized Film. The method is to deposit a thin layer of metal on a plastic film by vacuum evaporation to serve as an electrode. In this way, the thickness of the electrode foil can be omitted, and the volume per unit capacity of the capacitor can be reduced. Therefore, the film capacitor can be easily made into a small and large-capacity capacitor.

♦  The common MKP capacitor is the name of the metalized polypropylene film capacitor (Metailized Polypropylene Film Capacitor), and the MKT is the name of the metalized Polypropylene Film Capacitor (Metailized Polyester).

Deliver,Shipping And Serving

Lead Time： 3^15day(In Stock Within 3 Days)
Pre-Sale Service： Various Technical Support, Sairple Support, Sales Guidance
Customized Service： Capacity, Voltage, Size, Trademark
Special Service： Cut Feet, Bend Feet
Warranty： Unconditional replenishment

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：  www.xuanxcapacitors.com




The post AC capacitor 250VAC225j made in China appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> https://www.xuanxcapacitors.com/capacitors/ac-capacitor-250vac225j-made-in-china/feed/ 0 wholesale 0.68UF CBB21 polypropylene film capacitors 250V https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale-copy/ https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale-copy/#respond Sat, 24 Jul 2021 01:56:36 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=21812 Type: Film capacitor Deviation: ±5% (J) ±10% (K) Application: General Packing type: through hole Warranty: Unconditional replenishment Inquiry Now

The post wholesale 0.68UF CBB21 polypropylene film capacitors 250V appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> 0.68UF CBB21 polypropylene film capacitors 250V

0.68UF CBB21 polypropylene film capacitors are used in switching power supplies, frequency discrimination and filter circuits, as well as energy storage and sample and hold applications.

Film capacitor — CBB21

Application



Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：  www.xuanxcapacitors.com



The post wholesale 0.68UF CBB21 polypropylene film capacitors 250V appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale-copy/feed/ 0 polypropylene film capacitors CBB21 224J630V factory wholesale https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale/ https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale/#respond Sat, 24 Jul 2021 01:30:51 +0000 https://www.xuanxcapacitors.com/?post_type=product&p=21809 CBB21 Polypropylene Capacitor 224J 630V FILM CAPACITOR P:20.0mm Capacitace Tolerance: ±5%(J) Size(T*H*W): 7.5*14.0*24.0mm Inquiry Now

The post polypropylene film capacitors CBB21 224J630V factory wholesale appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> polypropylene film capacitors CBB21 224J630V factory wholesale

polypropylene film capacitors CBB21 is non-inductive structure,Flame-retardant epoxy resin encapsulation, CP wire is led out radially, low loss, low temperature rise, stable capacity, excellent insulation performance, and good self-healing characteristics,It is suitable for AC / DC, low-pulse circuits, and can be widely expanded in various electronic appliances such as display equipment, audio equipment, audio-visual equipment, communication equipment, and data transmission processing.

Film capacitor — CBB21

Application



Deliver,Shipping And Serving

We are a supplier of electrolytic capacitor, and we have rich experiences in this field. Our daily production capacity can reach  7 million electrolytic capacitors, the sample period is 3 days, and the production cycle is 10 days. We will give you great support in terms of price, quality and delivery time.

And Support Customer’s Visit To The Factory

e-mail：  coco@xuanxcapacitors.com

Pho（whatsapp）：+ 86-18825879082

Skype：Coco

website：  www.xuanxcapacitors.com



The post polypropylene film capacitors CBB21 224J630V factory wholesale appeared first on Dongguan Xuanxuan Electrolytic Technology Co,.ltd.

]]> https://www.xuanxcapacitors.com/capacitors/polypropylene-film-capacitors-cbb21-224j630v-factory-wholesale/feed/ 0
